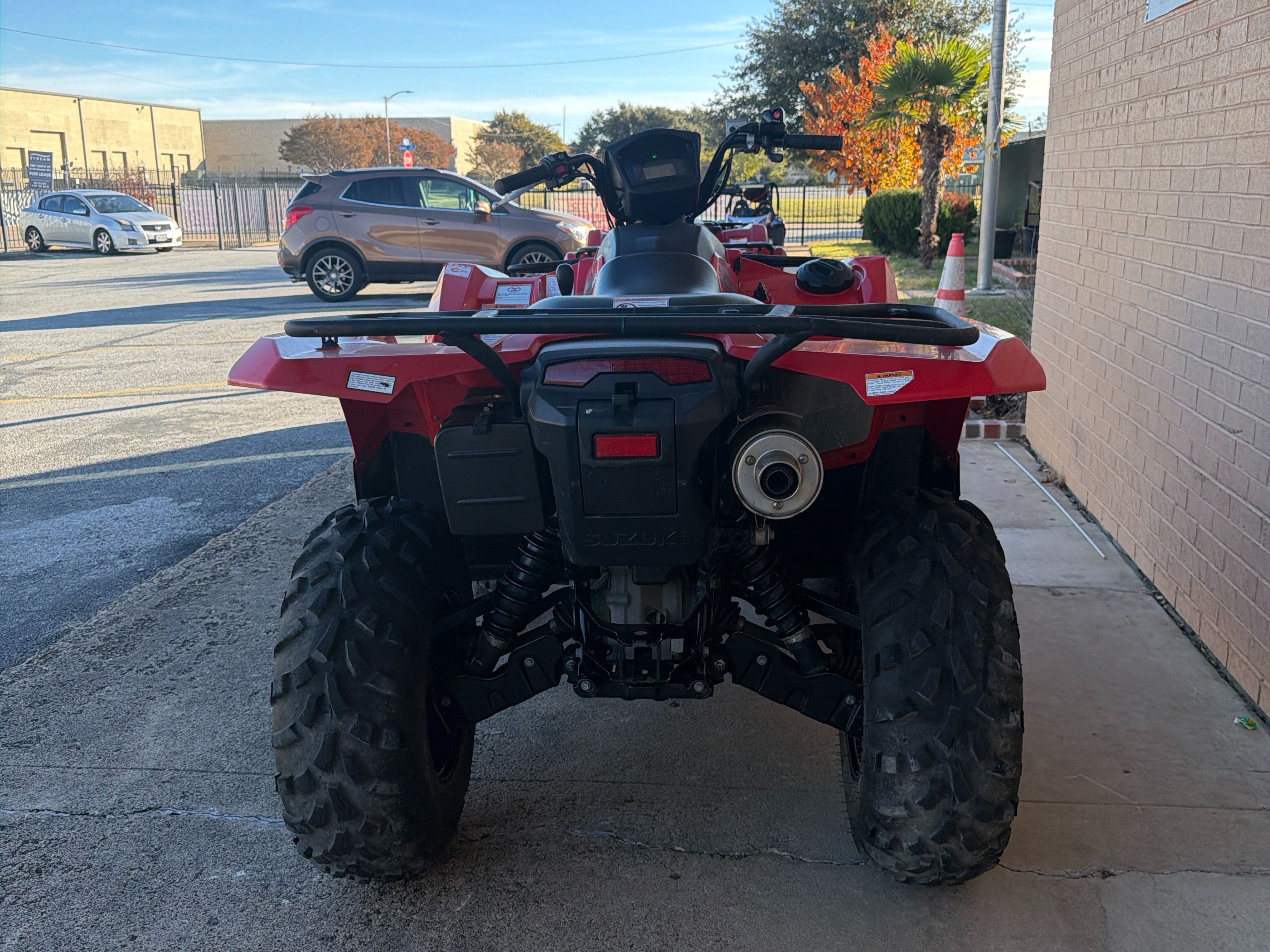

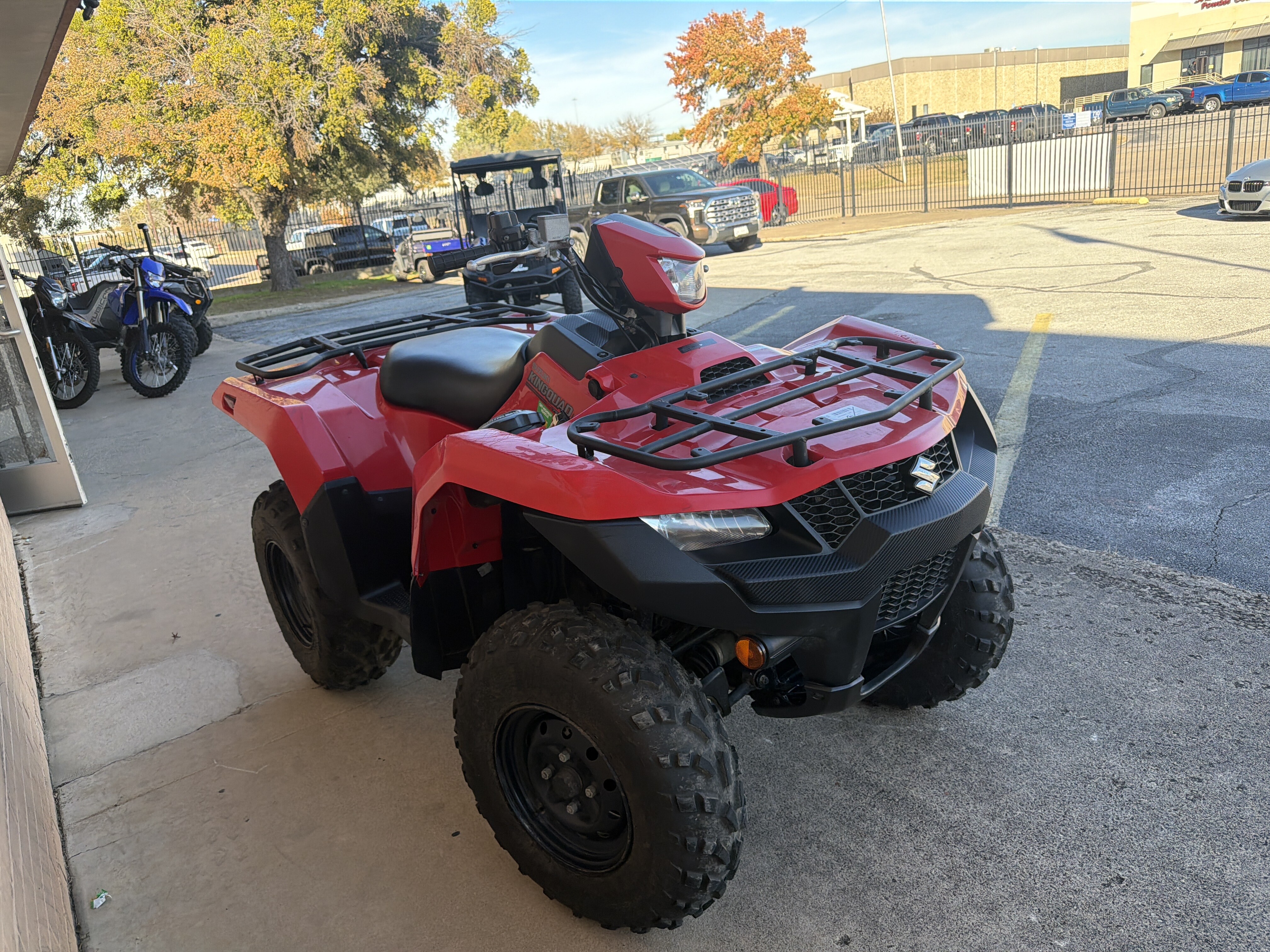

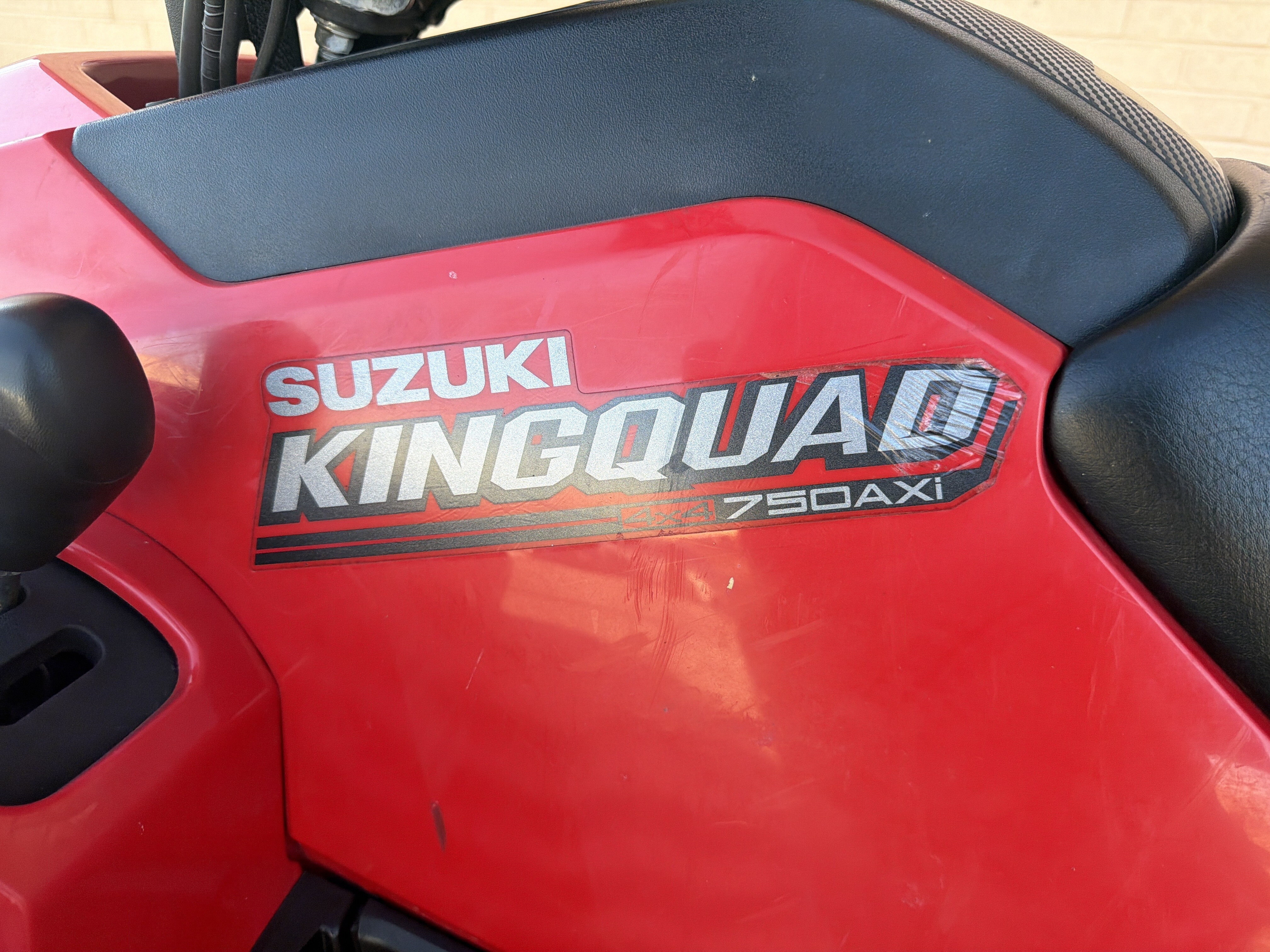

Pre-Owned 2022 Suzuki KingQuad 750AXi – Powerful 722cc Utility ATV for Work & Trail
The 2022 Suzuki KingQuad 750AXi is built to tackle the toughest jobs and the roughest terrain with confidence. Equipped with a strong 722cc fuel-injected single-cylinder engine, this ATV delivers exceptional torque, smooth power delivery, and dependable performance for both utility work and recreational riding.
Featuring Suzuki’s advanced QuadMatic™ CVT transmission, selectable 2WD/4WD with differential lock, and a durable chassis, the KingQuad 750AXi offers stability, power, and precise control on challenging trails. With generous towing and rack capacities, independent suspension, and a comfortable riding position, it’s designed for long days on the job or on the trail.
Strong, reliable, and built to perform—the KingQuad 750AXi remains one of the most trusted big-bore ATVs in the industry.
- Engine & Drivetrain
- Engine Type 722 cc Liquid‑Cooled 4‑Stroke DOHC Single Cylinder
- Displacement 722 cc (44.1 cu in)
- Bore x Stroke 104.0 mm × 85.0 mm
- Compression Ratio 9.9 : 1
- Fuel System Suzuki Electronic Fuel Injection
- Ignition Electronic Ignition (Transistorized)
- Starter Electric
- Transmission Automatic Variable Ratio (V‑belt) with High/Low Range & Reverse
- Clutch Dry Shoe, Automatic, Centrifugal Type
- Drive System 2WD, 4WD & 4WD with Differential Lock
- Final Drive Shaft Drive
- Suspension & Brakes
- Front Suspension Independent Double Wishbone, Coil Spring, Gas Charged & Oil Damped with 5‑Way Preload Adjustable Shocks
- Rear Suspension Independent Double Wishbone, Coil Spring, Gas Charged & Oil Damped with 5‑Way Preload Adjustable Shocks
- Front Brakes Twin Rotor Disc Brakes
- Rear Brakes Sealed Oil‑Bathed Multi‑Disc Brake
- Tires & Wheels
- Front Tires AT25 × 8‑12 Tubeless (×2)
- Rear Tires AT25 × 10‑12 Tubeless (×2)
- Dimensions & Capacities
- Overall Length 2150 mm (84.6 in)
- Overall Width 1215 mm (47.8 in)
- Overall Height 1285 mm (50.6 in)
- Wheelbase 1285 mm (50.6 in)
- Ground Clearance 260 mm (10.2 in)
- Seat Height 920 mm (36.2 in)
- Fuel Capacity 17.5 L (4.6 US gal)
- Curb Weight ~329 kg (725 lb)
- Features & Equipment
- Instrumentation Multi‑Function Instrument Panel with LCD Readouts
- Lighting Dual 35 W Fender‑Mounted Headlights & Handlebar Headlight, LED Tail Light
- Hitch & Towing Receiver‑Type Trailer Hitch (Towing up to ~1322 lb Ready)
