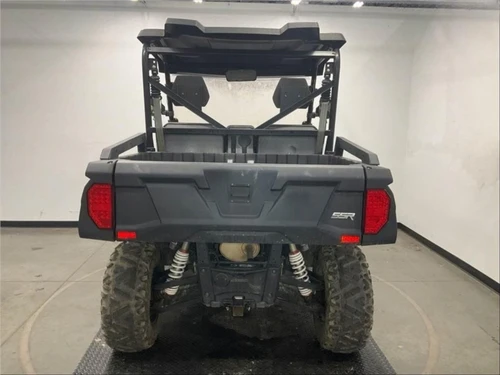

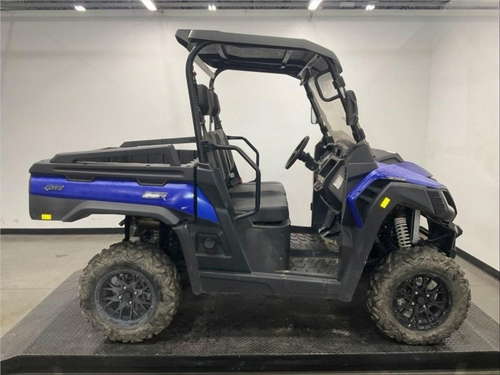

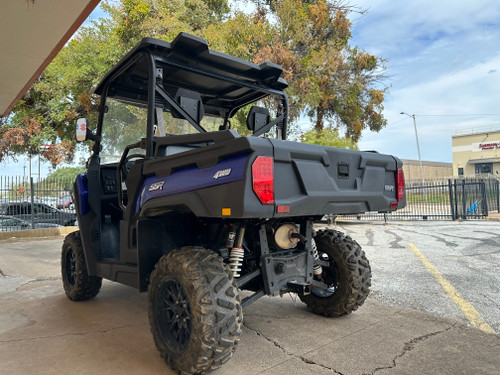

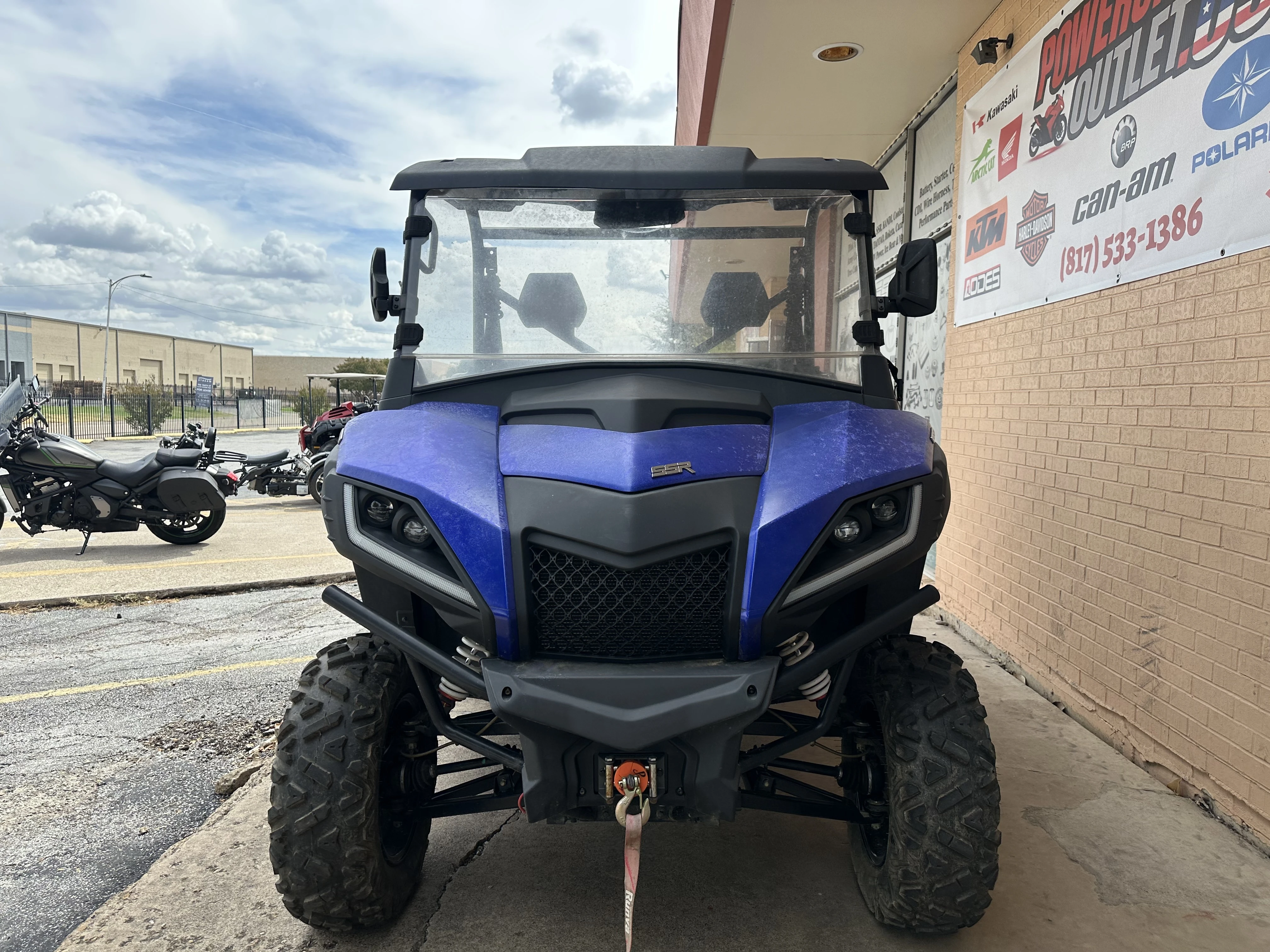

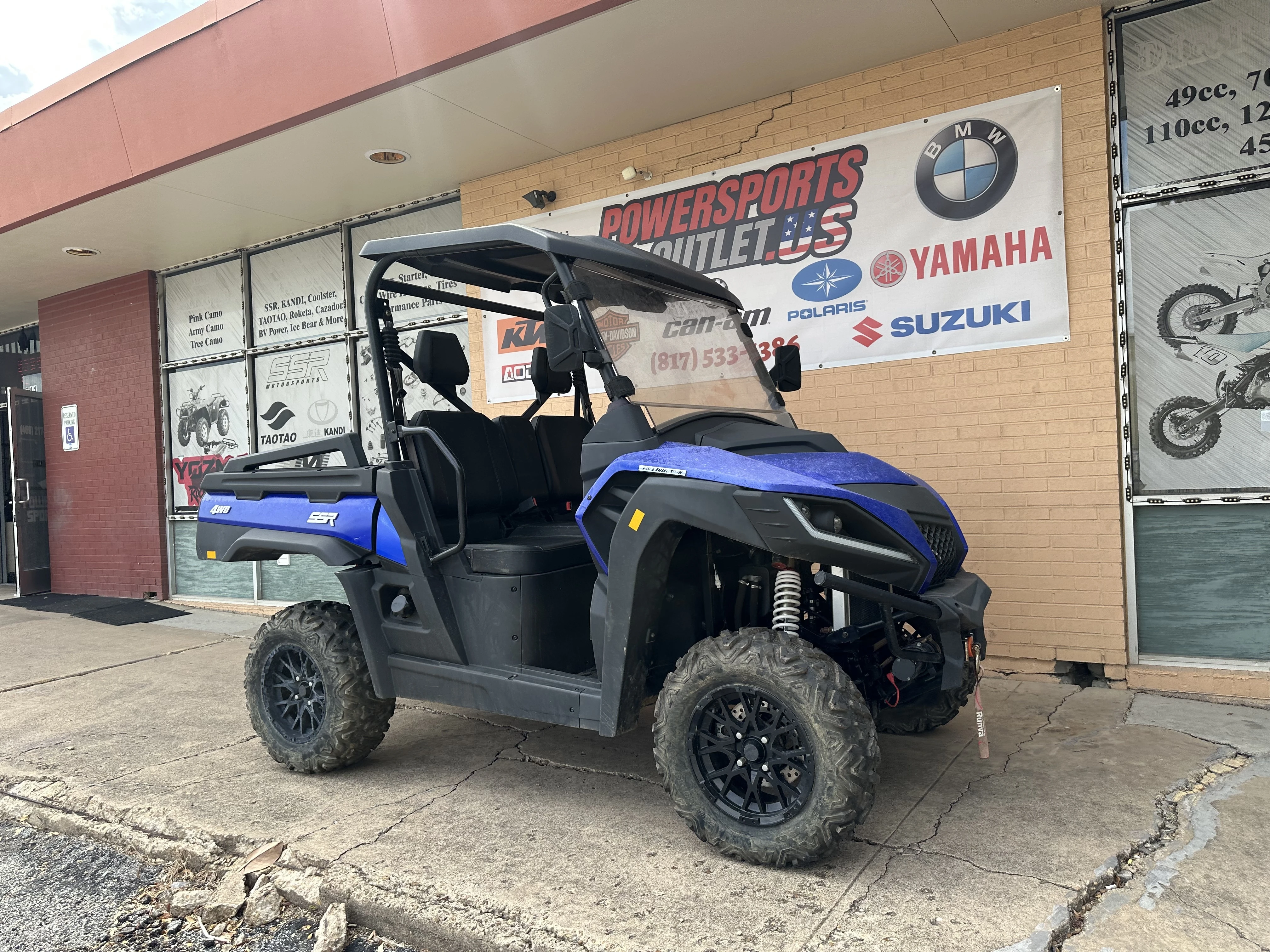

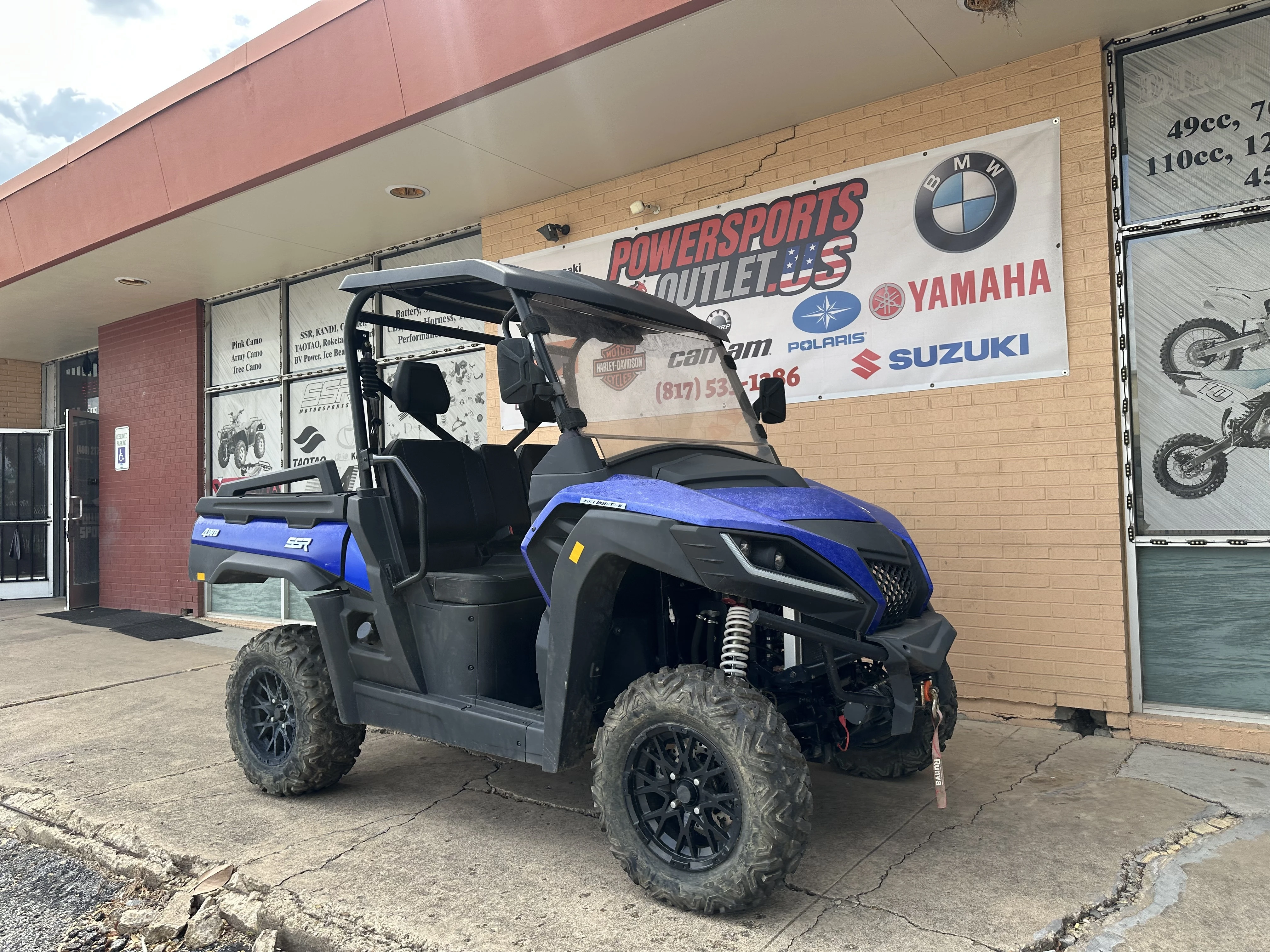

Pre-Owned 2023 SSR Motorsports Bison 500U – 498.6cc 4WD Utility UTV
The 2023 SSR Motorsports Bison 500U is a rugged and capable utility side-by-side built for work, hauling, towing, and off-road recreation. Powered by a 498.6cc liquid-cooled, single-cylinder 4-stroke engine, the Bison 500U delivers a strong combination of usable power and dependable performance. The engine produces a rated 34 horsepower at 6,300 rpm and 29.5 lb-ft of torque at 4,800 rpm.
An automatic CVT transmission with L-H-N-R-P ranges makes the Bison 500U simple to operate, while the 4WD drivetrain with locking front and rear differentials provides additional traction when tackling challenging terrain. Electronic fuel injection, liquid cooling, and electric power steering further enhance its usability for everyday work and recreational riding.
The Bison 500U features double A-arm suspension front and rear, hydraulic disc brakes, aluminum wheels, and aggressive 26-inch tires. With 11.4 inches of ground clearance, it is designed to handle uneven trails and demanding outdoor conditions with confidence.
- ENGINE & DRIVETRAIN
- Engine Type 4-Stroke, Single-Cylinder, SOHC, Liquid-Cooled
- Engine Model XY192MR
- Displacement 498.6cc
- Bore × Stroke 92 × 75 mm
- Compression Ratio 10.2:1
- Maximum Power 34 HP @ 6,300 RPM
- Maximum Torque 29.5 lb-ft @ 4,800 RPM
- Fuel System Electronic Fuel Injection (EFI)
- Starting System Electric Start
- Transmission Automatic CVT (L-H-N-R-P)
- Drive System 4WD with Locking Front & Rear Differentials
- Final Drive Shaft Drive
- Lubrication Wet Sump
- CHASSIS & SUSPENSION
- Frame Steel Frame
- Front Suspension Independent Double A-Arm
- Rear Suspension Independent Double A-Arm
- BRAKES & TIRES
- Front Brakes Dual Hydraulic Disc
- Rear Brakes Hydraulic Disc
- Front Tires 26 × 9-14
- Rear Tires 26 × 11-14
- Front Wheels 14-Inch Aluminum
- Rear Wheels 14-Inch Aluminum
- DIMENSIONS & CAPACITIES
- Overall Length 120.6 in (3,070 mm)
- Overall Width 63.7 in (1,622 mm)
- Overall Height 80.7 in (2,060 mm)
- Wheelbase 74.0 in (1,930 mm)
- Ground Clearance 11.4 in (290 mm)
- Dry Weight 1,475 lb (669 kg)
- Fuel Capacity 7.93 gal (30 L)
- Load Capacity 772 lb (350 kg), Combined Rider & Cargo
- Towing Capacity 820 lb
- Cargo Bed Dimensions 36.6 × 50 × 11.8 in
- FEATURES & EQUIPMENT
- Power Steering Electric Power Steering (EPS)
- Cargo Bed Assisted Dump Bed
- Towing Equipment Towing Hitch with Electric Connector
- Roof Standard Roof
- Windshield Standard Windshield
- Door Protection Door Nets
- Lighting LED Headlights and Taillights
- Battery 12V 30Ah
