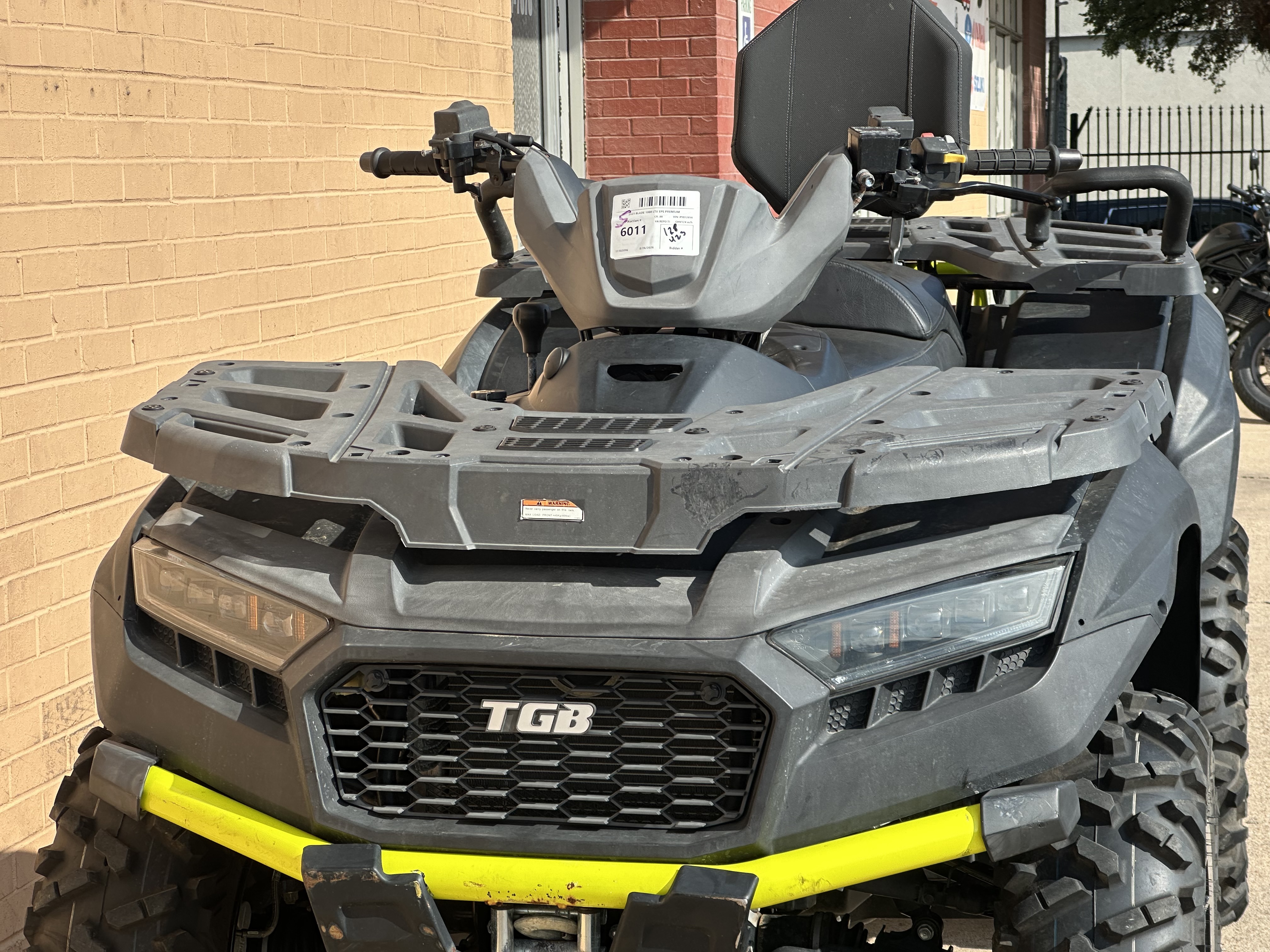

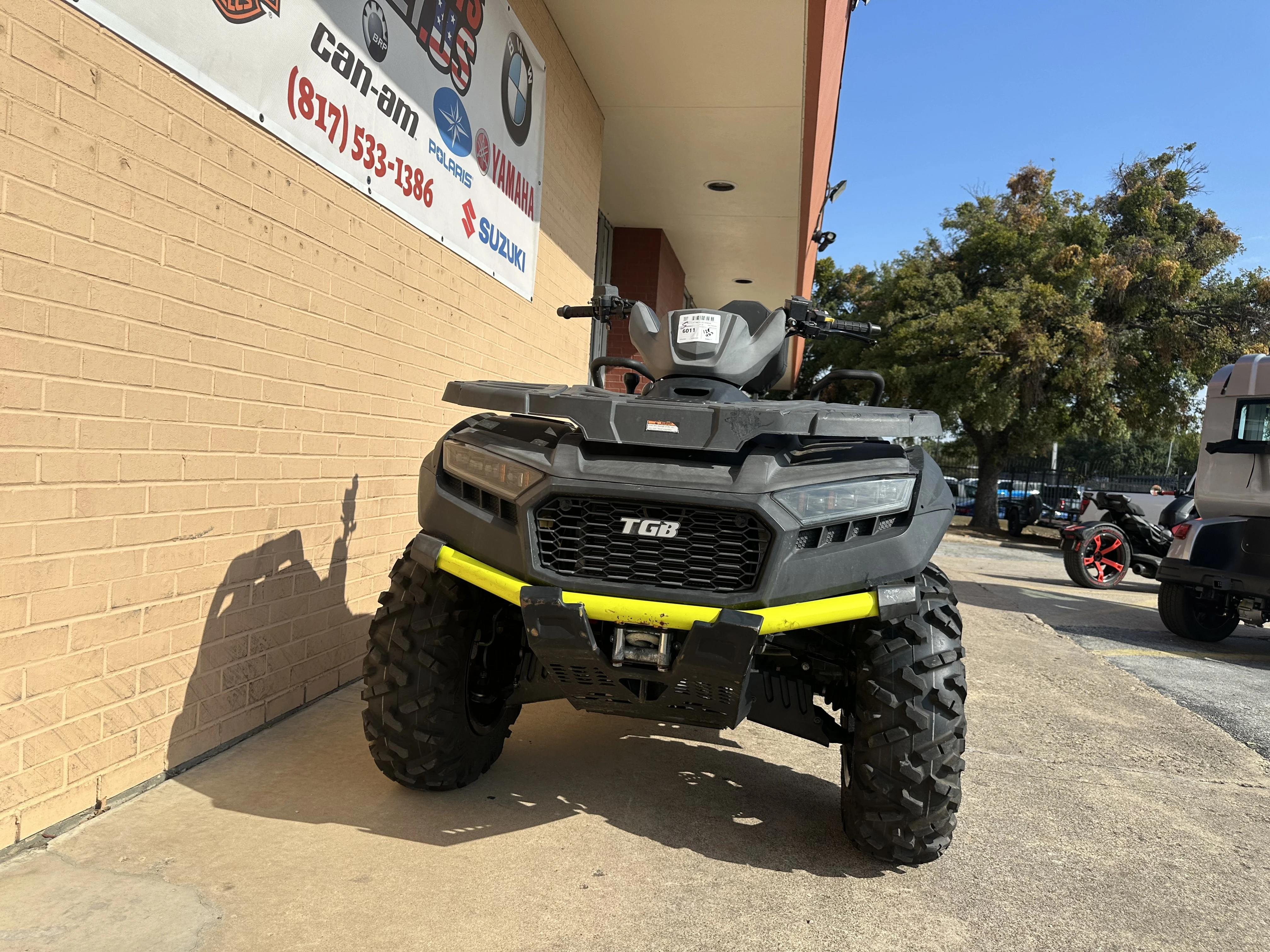

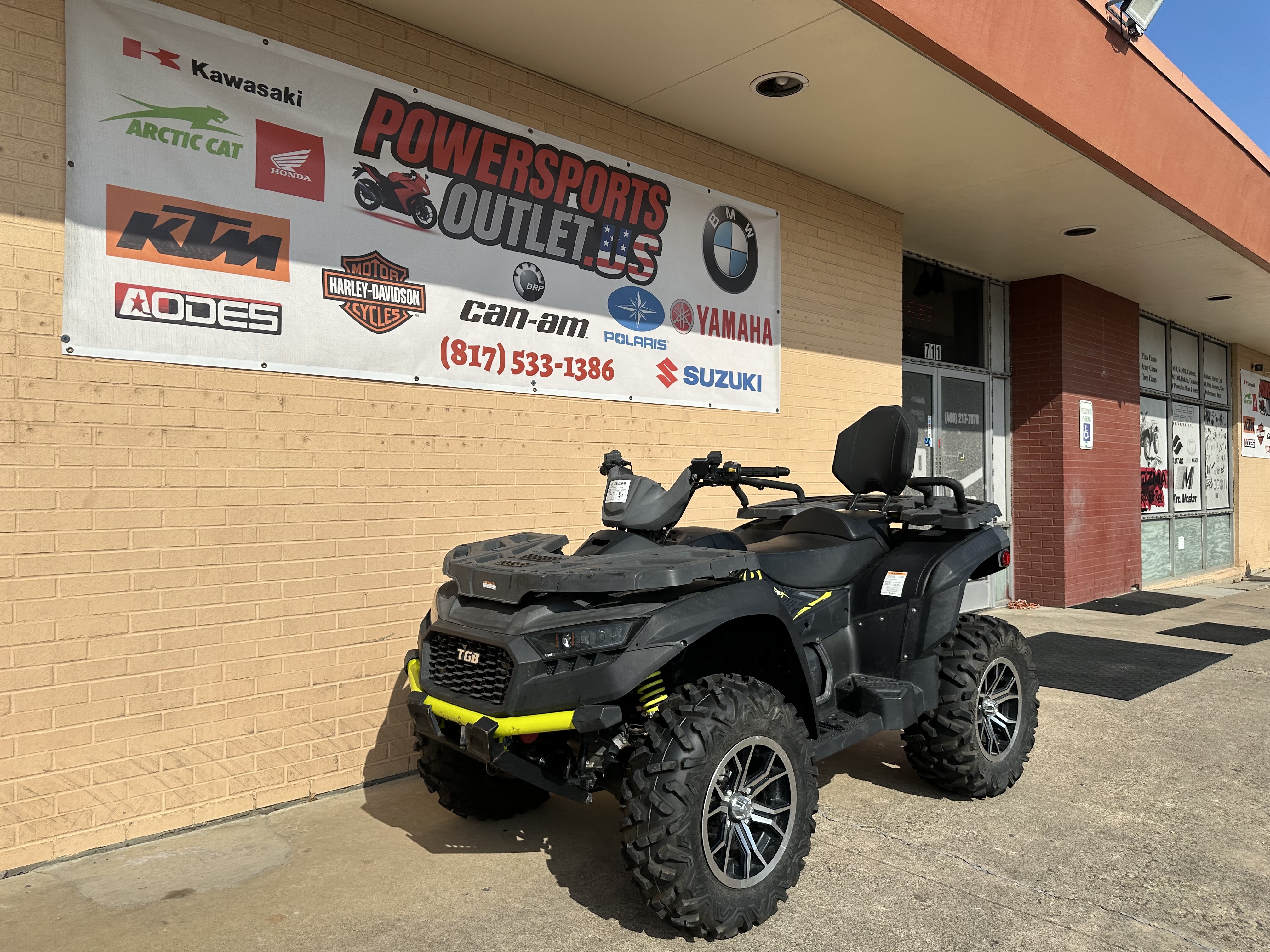

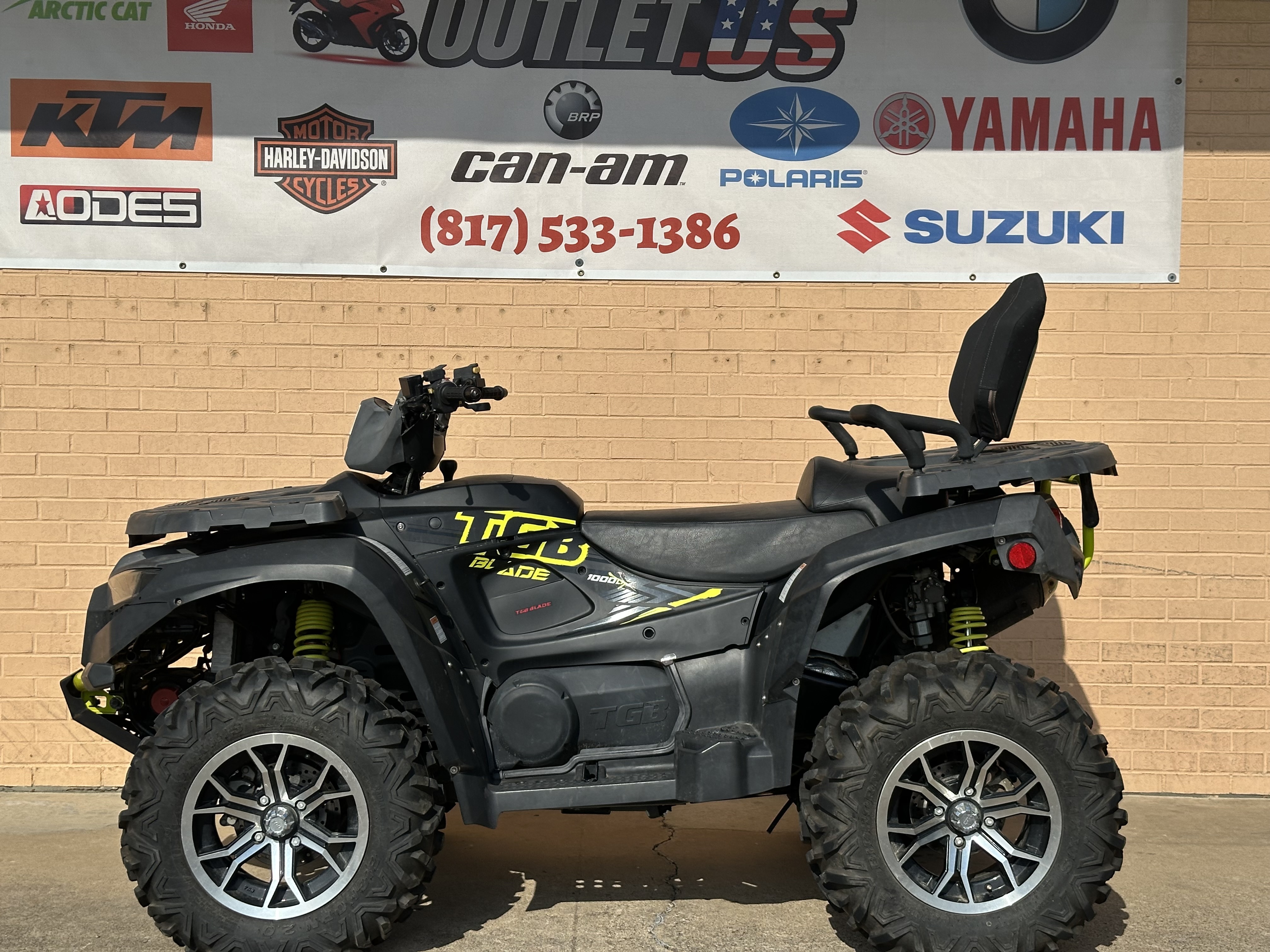

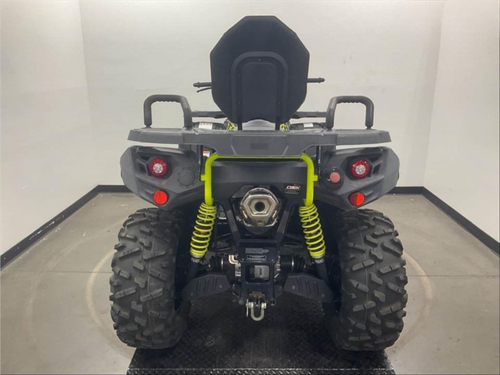

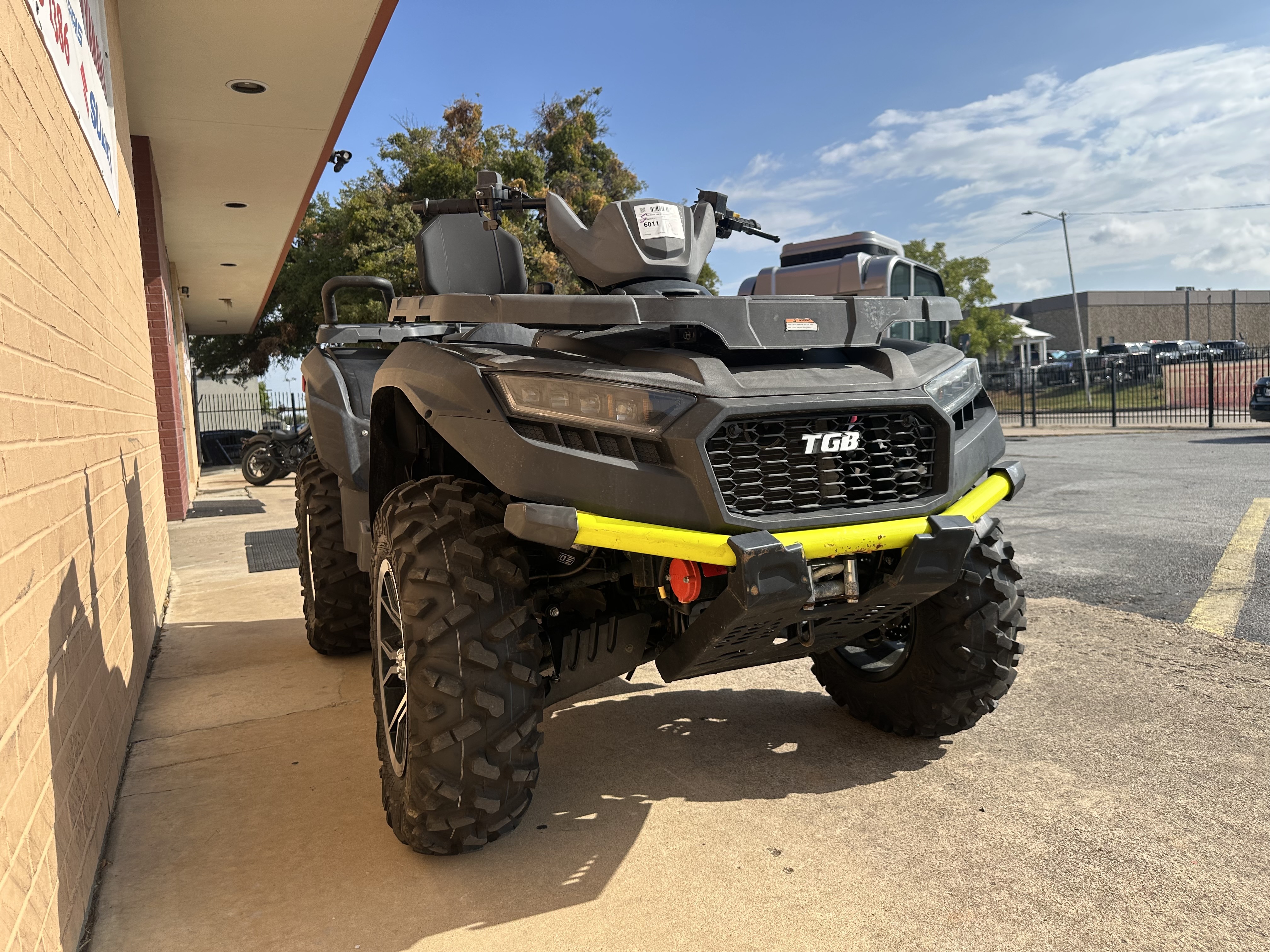

Pre-Owned 2023 TGB Blade 1000 LTX EPS Premium – 997cc 4x4 Utility ATV
The 2023 TGB Blade 1000 LTX EPS Premium is a powerful and versatile 4x4 utility ATV designed for demanding work, trail riding, hunting, hauling, and outdoor recreation. Powered by a 997cc liquid-cooled V-twin 4-stroke engine, the Blade 1000 LTX delivers strong torque and responsive performance across a wide range of terrain.
The engine is paired with an automatic CVT transmission featuring High, Low, Neutral, Reverse, and Park ranges. The selectable 2WD/4WD system with differential lock provides additional traction when riding through mud, gravel, steep terrain, and other challenging conditions.
The Electronic Power Steering (EPS) system helps reduce steering effort and rider fatigue, particularly during low-speed maneuvering and extended trail rides. Independent suspension provides a controlled and comfortable ride over rough terrain, while the long-travel chassis and generous ground clearance enhance off-road capability.
- ENGINE & DRIVETRAIN
- Engine Type 997cc Liquid-Cooled V-Twin, SOHC 4-Stroke
- Displacement 997cc
- Bore x Stroke 92 x 75.0 mm (3.62 x 2.95 in)
- Compression Ratio 10.2:1
- Fuel System 50mm Throttle Body / Programmed Fuel Injection
- Ignition ECU
- Starting System Electric Start
- Maximum Power 83 HP @ 7,000 RPM
- Maximum Torque 89.9 Nm @ 5,500 RPM
- Transmission V-Belt CVT Automatic, L/H/N/R/P
- Drive System Selectable 2WD/4WD Shaft Drive
- Engine Braking Standard
- Electronic Power Steering Standard
- SUSPENSION & BRAKES

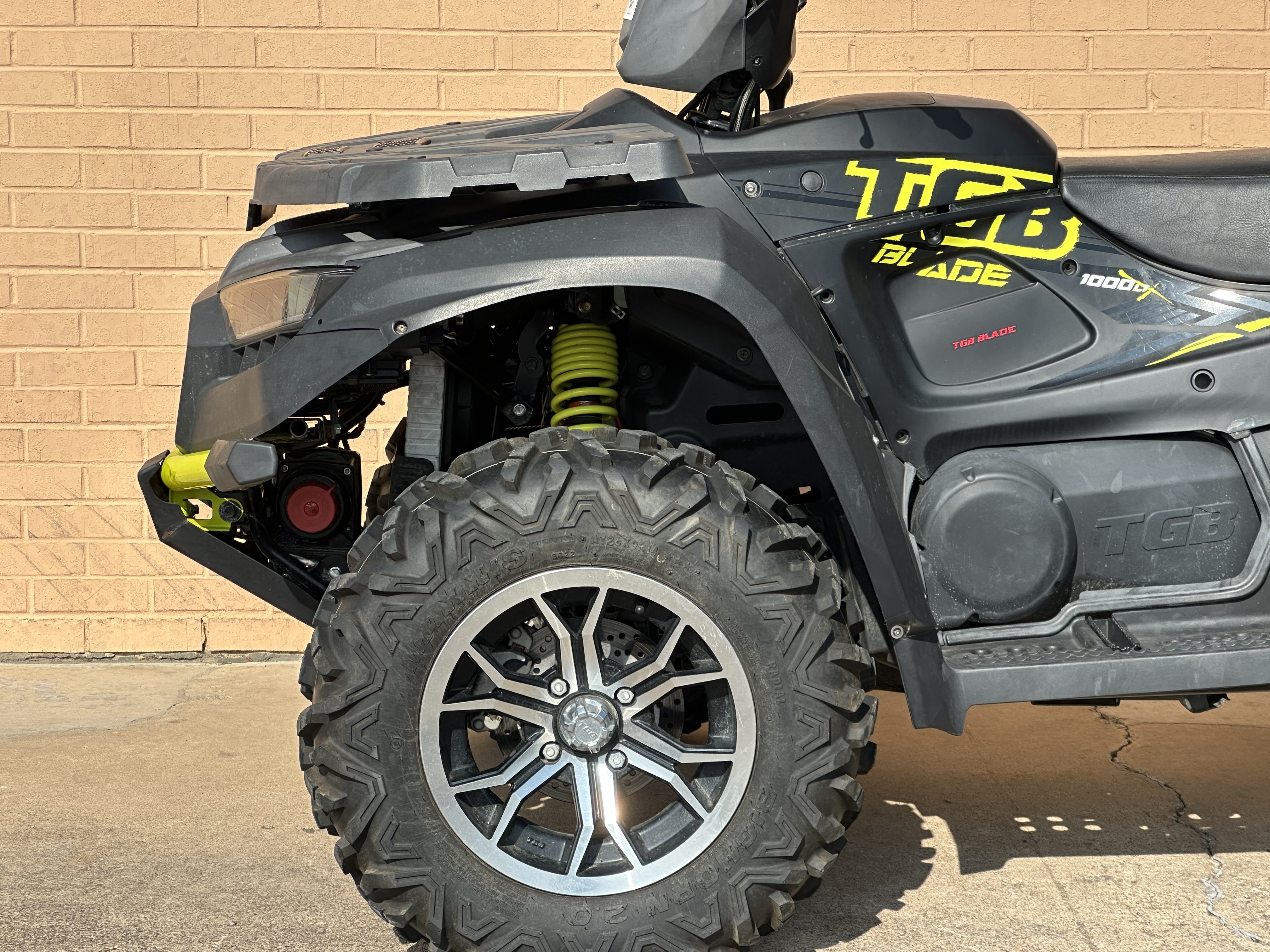

- Front Suspension Dual A-Arm with EVO Gas Shock Absorbers
- Front Shock Adjustment Adjustable Spring Preload

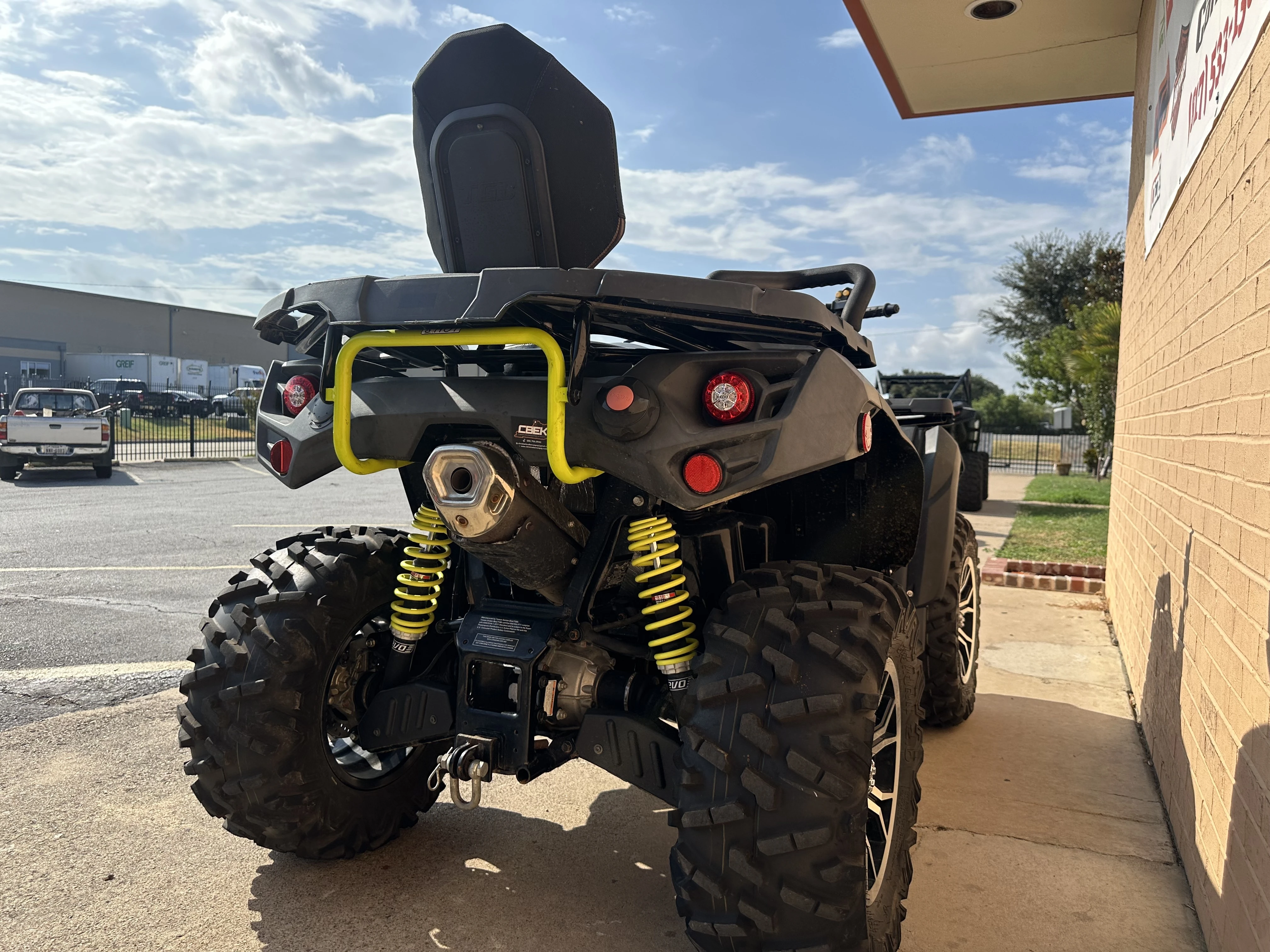

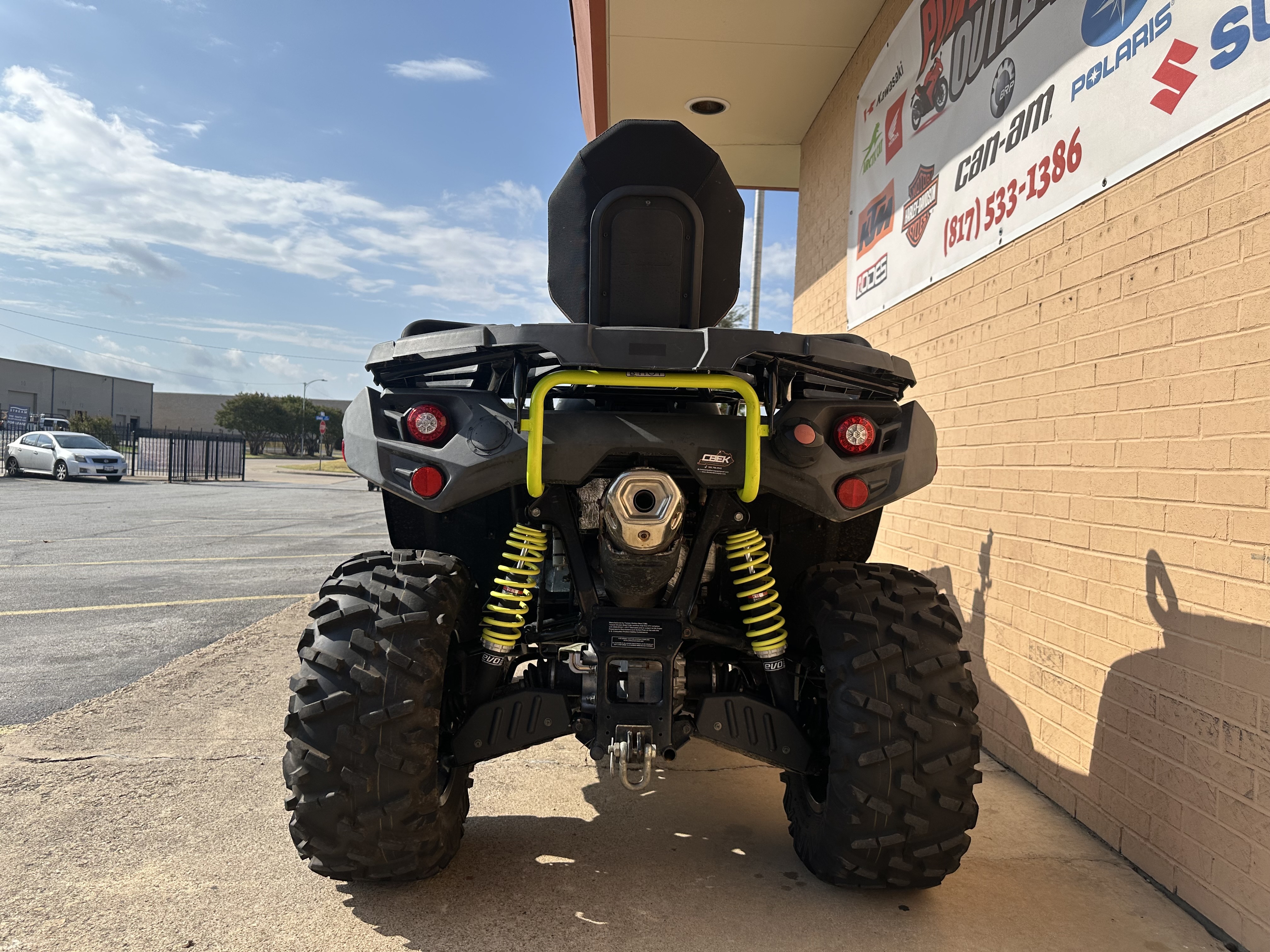

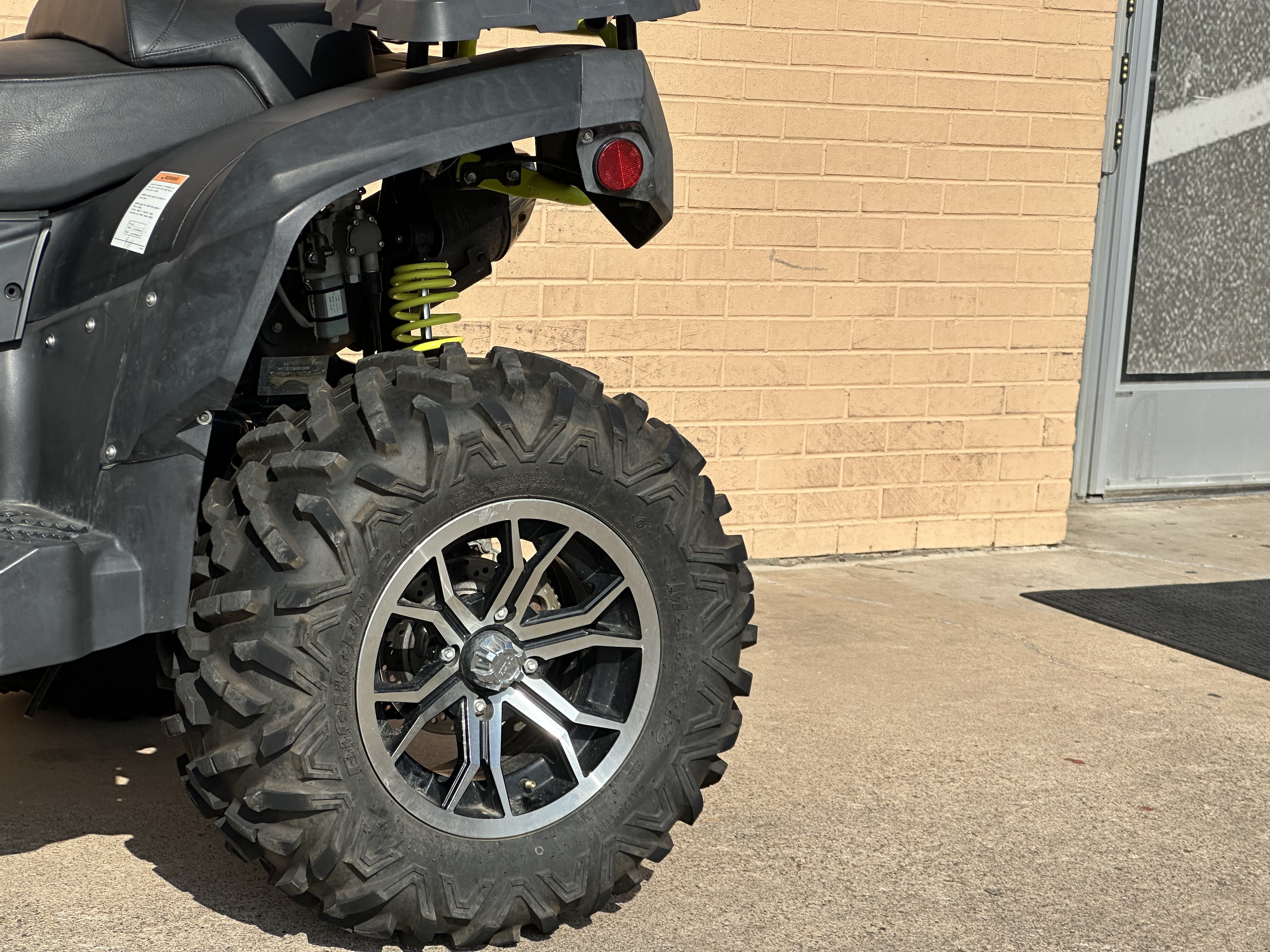

- Rear Suspension Dual A-Arm with Anti-Roll Bar and EVO Gas Shock Absorbers
- Rear Shock Adjustment Adjustable Spring Preload
- Front/Rear Brakes Hydraulic Disc with Piston Calipers and Hydraulic Foot Brake
- Parking Brake Park-in-Transmission / Lockable Hand Lever
- TIRES & WHEELS
- Front Tires AT 26 x 9-14, 6-Ply
- Rear Tires AT 26 x 11-14, 6-Ply
- Wheels 14-inch Aluminum Wheels
- DIMENSIONS & CAPACITIES
- Overall Length 92.1 in (2,340 mm)
- Overall Width 49.4 in (1,255 mm)
- Overall Height 52.8 in (1,340 mm)
- Wheelbase 57.5 in (1,460 mm)
- Ground Clearance 11.6 in (295 mm)
- Dry Weight 933 lbs (423 kg)
- Fuel Capacity 6.1 gal (23 L)
- Seating Capacity 2 Persons
- Payload Capacity 441 lbs (200 kg)
- ADDITIONAL FEATURES
- Display Digital TFT Instrument Panel with Speedometer, Odometer, Trip Meter, RPM, Gear Position and Fuel Gauge
- Drive Indicators 2WD/4WD, Differential and EPS Indicators
- Lighting LED Headlights and LED Taillights
- Electrical Outlets 2 x 12V DC, 10A, 120W
- Winch 3,000 lb Factory-Installed Winch
- Protection Front and Rear Racks, Front Bumper, Skid Plate and Hand Guards

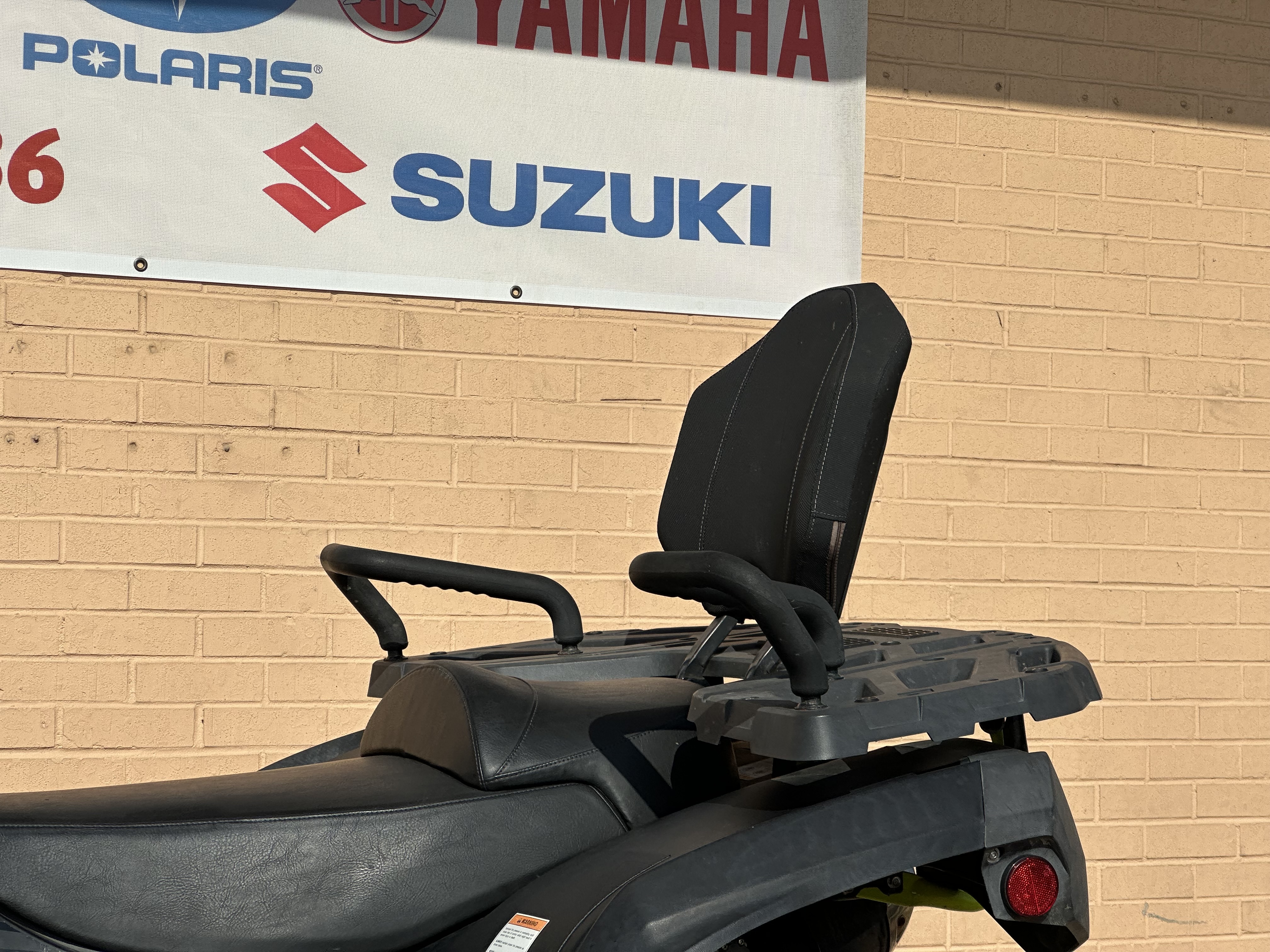

- Passenger Equipment Passenger Seat with Backrest and Grab Handles
- Homologation T3 / L7e 2-Seater Available
