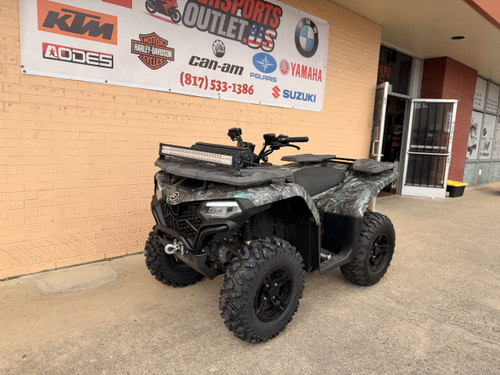

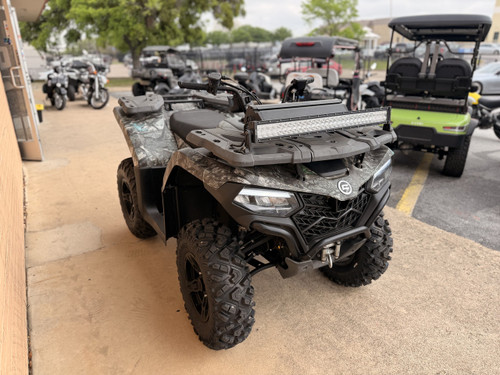

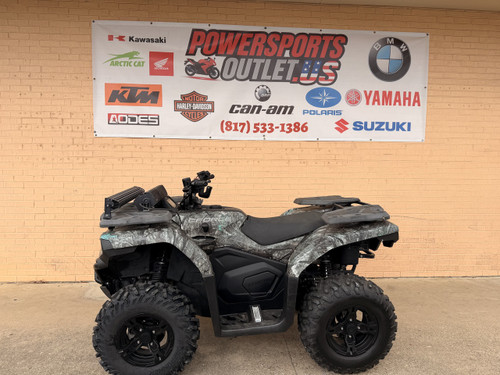

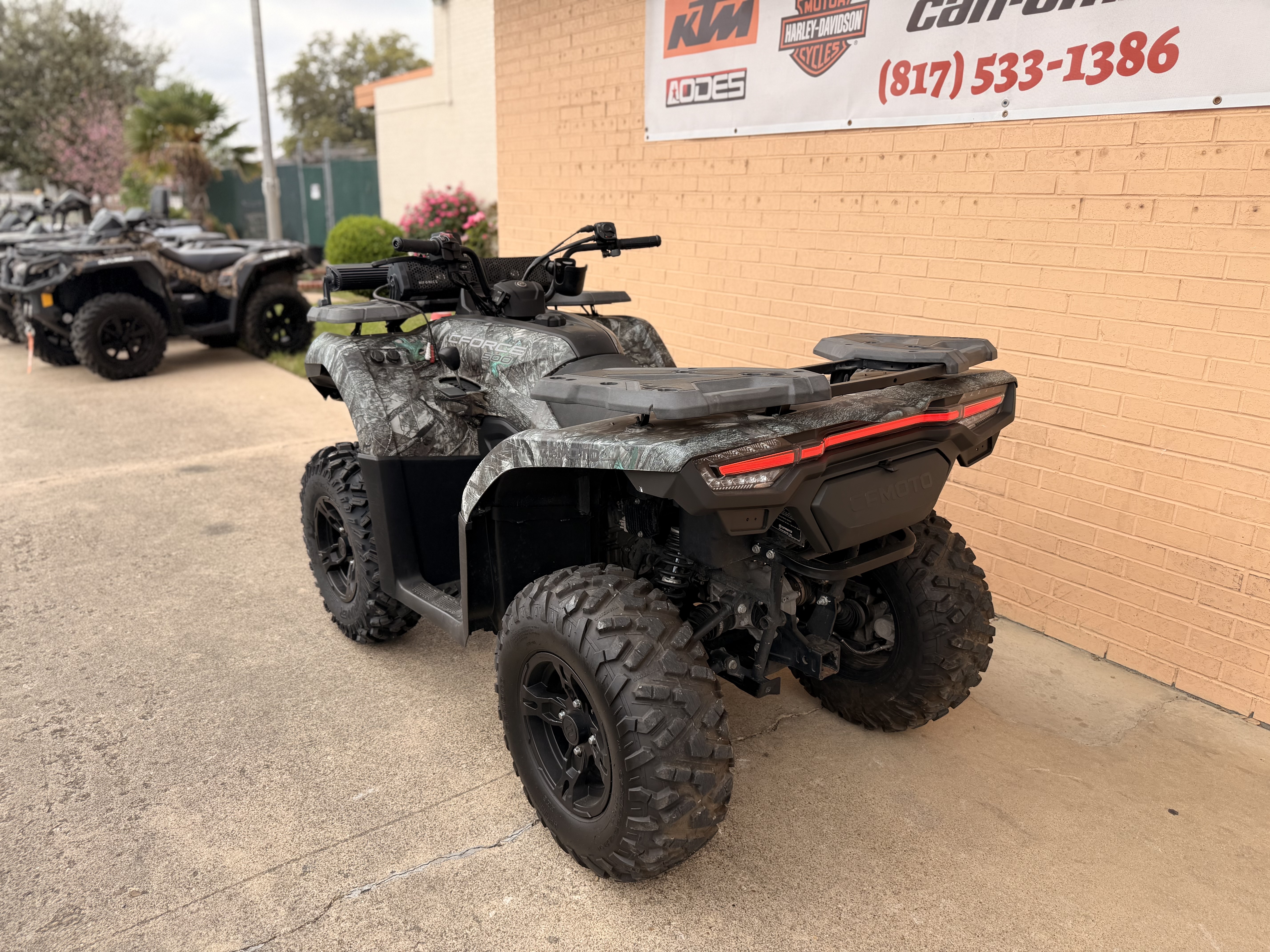

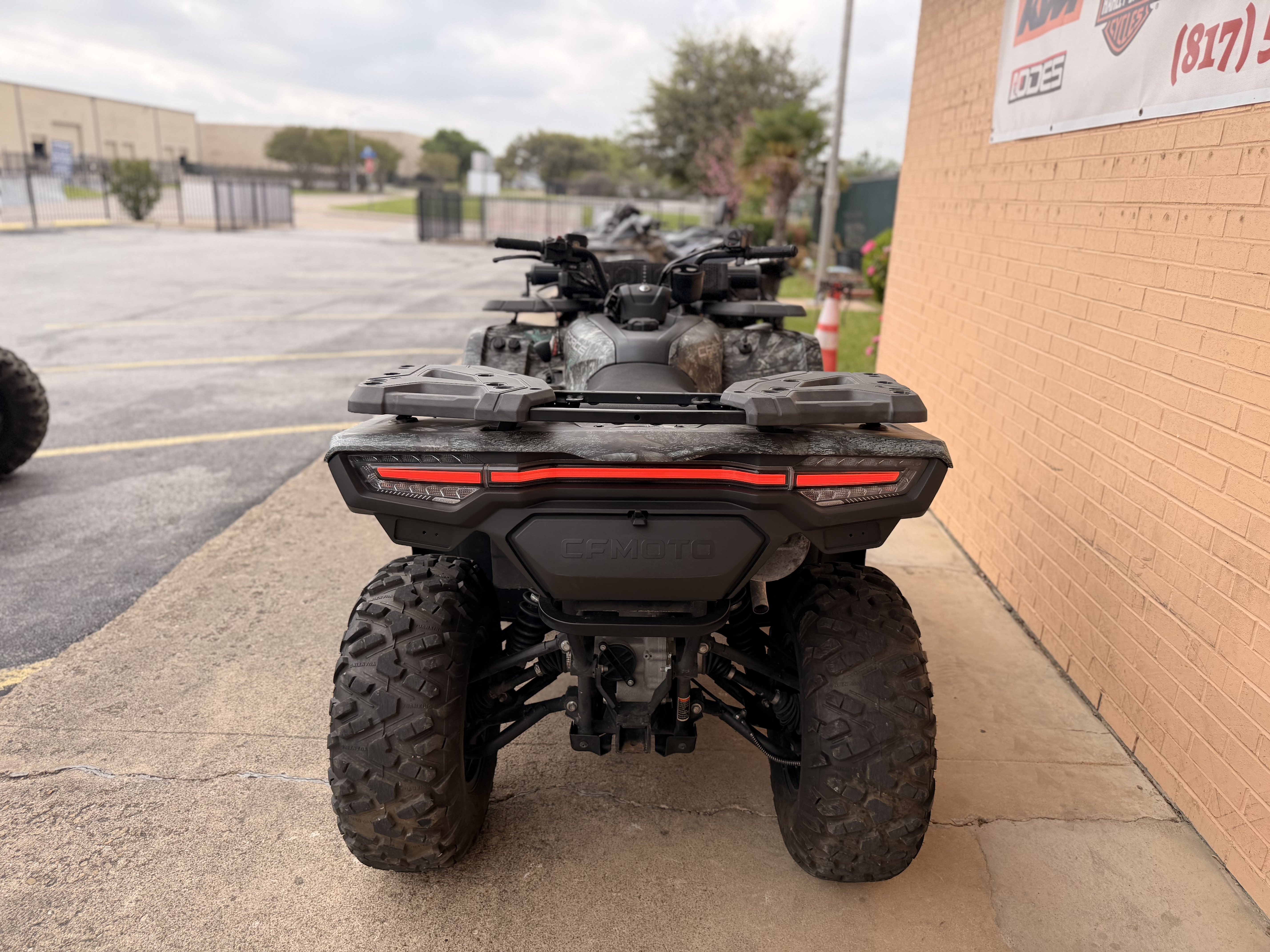

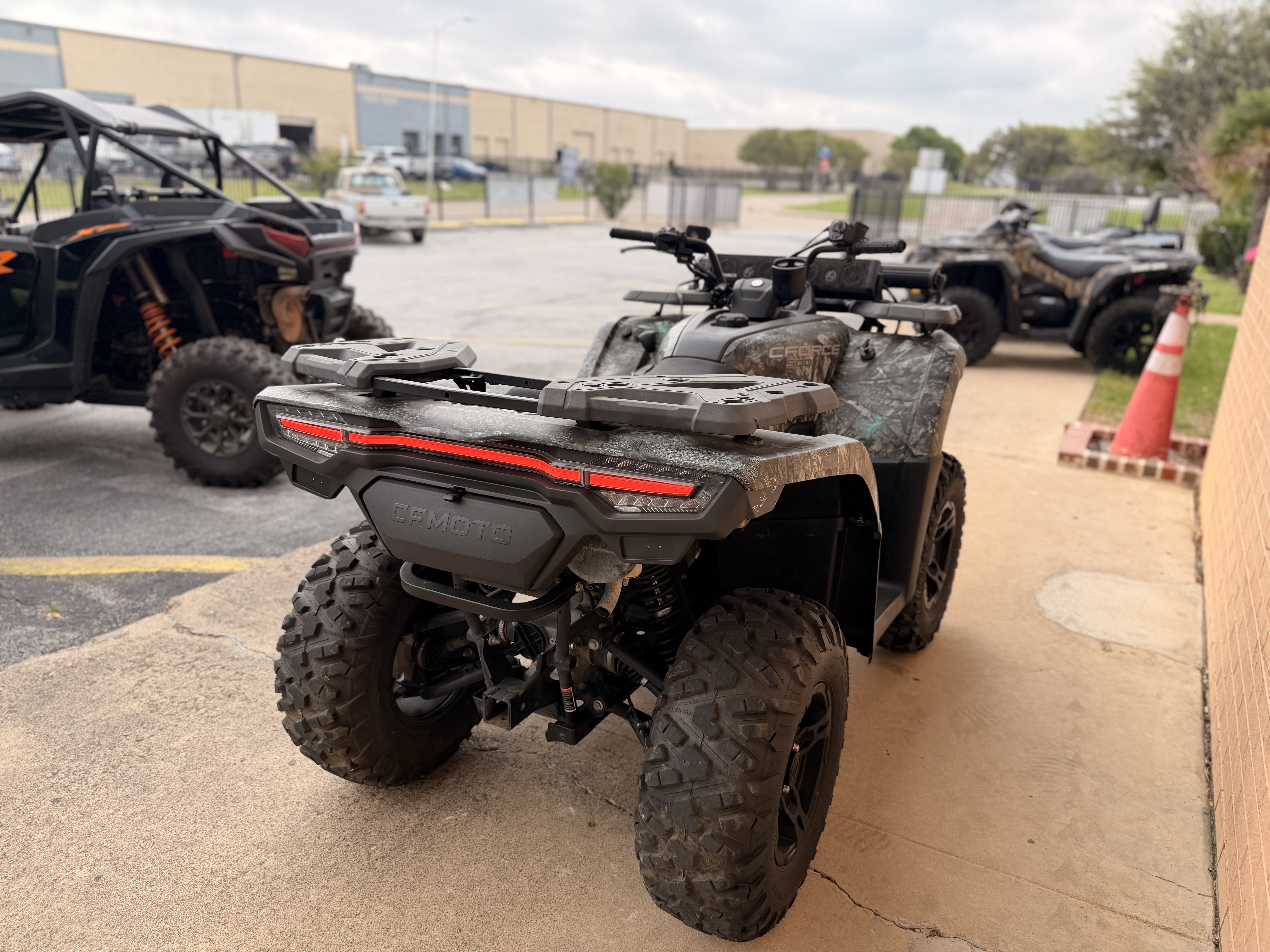

Pre-Owned 2024 CFMOTO CFORCE 500 – 495cc 4x4 Utility ATV with EFI, EPS & Winch
The 2024 CFMOTO CFORCE 500 is a reliable mid-size 4x4 utility ATV designed for off-road adventures, farm work, hunting, and trail riding. Powered by a 495cc liquid-cooled, single-cylinder 4-stroke engine with fuel injection, it delivers strong performance with approximately 35 horsepower and 40 Nm of torque, giving riders dependable power across different terrains.
This ATV features a CVTech automatic CVT transmission with high/low range and reverse, providing smooth operation and easy control for riders of all experience levels. The selectable 2WD / 4WD drivetrain with locking front differential ensures excellent traction on mud, dirt, sand, or rocky trails.
Built for durability and comfort, the CFORCE 500 comes equipped with independent double A-arm suspension, electric power steering (EPS), and hydraulic disc brakes, offering stable handling and confident stopping power. It also includes practical utility features such as front and rear cargo racks, LED lighting, aluminum wheels, and a factory-installed winch for pulling or recovery tasks.
- Engine & Drivetrain
- Engine Type Single-Cylinder, 4-Stroke, SOHC, 4-Valve
- Displacement 495cc
- Horsepower 35 HP @ 6250 RPM
- Torque 30 lb-ft @ 6000 RPM
- Cooling Liquid-Cooled
- Fuel System Bosch® Electronic Fuel Injection (EFI)
- Starter Electric
- Transmission CVTech® Automatic (P / R / N / H / L)
- Drive System Selectable 2WD / 4WD with Electric Differential Lock
- Suspension & Brakes
- Front Suspension Independent Double A-Arm
- Rear Suspension Independent Double A-Arm
- Front Shocks Oil-Damped, Spring Pre-Load Adjustable
- Rear Shocks Oil-Damped, Spring Pre-Load Adjustable
- Front Brakes Dual Hydraulic Disc
- Rear Brakes Hydraulic Disc
- Parking Brake Hydraulic with Parking Lock
- Tires & Wheels
- Front Tires 25 × 8-12
- Rear Tires 25 × 10-12
- Wheels 12 in Cast Aluminum Alloy
- Dimensions & Capacities
- Overall Length 80.6 in (2046 mm)
- Overall Width 44.3 in (1125 mm)
- Overall Height 45.3 in (1150 mm)
- Wheelbase 50 in (1260 mm)
- Ground Clearance 10.3 in (262 mm)
- Seat Height 20 in (508 mm)
- Fuel Capacity 4.5 gal (17 L)
- Curb Weight 783 lb (355 kg)
- Payload & Towing
- Front Rack Capacity 75 lb (34 kg)
- Rear Rack Capacity 132 lb (60 kg)
- Towing Capacity 1,350 lb
- Hitch Type 2 in Receiver Hitch
- Winch 2,500 lb Winch
- Instrumentation & Features
- Display 5 in LCD Digital Display
- Lighting RIDEVISION™ LED Headlights & LED Taillights
- Charging 12V Outlet & USB Charging Port
- Steering Electronic Power Steering (EPS)
