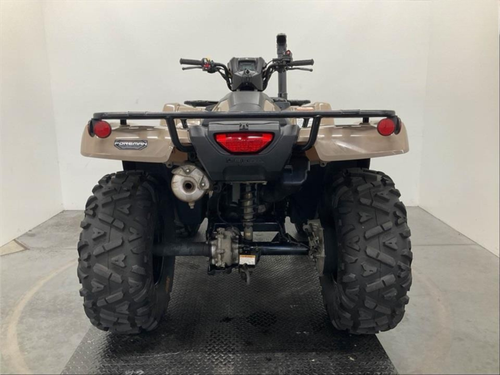

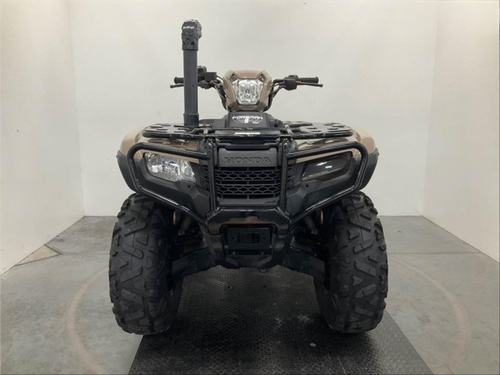

2024 Honda TRX520FM1 FourTrax Foreman 4×4 – Heavy-Duty Power & Proven Utility
The 2024 Honda TRX520FM1 FourTrax Foreman 4×4 is built for riders who demand durability, torque, and all-terrain capability. Powered by a strong 518cc fuel-injected engine, this Foreman delivers reliable performance whether you're tackling farm work, hauling gear, or exploring rugged trails.
Its manual foot-shift transmission offers full control, while the advanced TraxLok® selectable 2WD/4WD system ensures confidence on difficult terrain. With a tough chassis, high-capacity front and rear racks, and Honda’s legendary engineering, the Foreman 520 is designed to handle demanding tasks day after day.
Comfortable, capable, and exceptionally reliable—the TRX520FM1 is the workhorse ATV that never quits.
- Engine & Drivetrain
- Engine Type 518 cc Liquid‑Cooled Longitudinally Mounted Single‑Cylinder 4‑Stroke
- Displacement 518 cc
- Bore x Stroke 96.0 mm × 71.5 mm
- Compression Ratio 9.5 : 1
- Fuel System Programmed Fuel Injection (PGM‑FI); 36 mm Throttle Body
- Starter Electric with Optional Auxiliary Recoil
- Transmission Five‑Speed Manual with Reverse
- Clutch Automatic Centrifugal
- Driveline Direct Front & Rear Driveshafts with TraxLok® & Front Differential Lock
- Suspension & Brakes
- Front Suspension Independent Double‑Wishbone; 7.3″ Travel
- Rear Suspension Swingarm with Single Shock; 7.3″ Travel
- Front Brakes Dual 190 mm Hydraulic Discs
- Rear Brake 160 mm Sealed Mechanical Drum
- Tires & Wheels
- Front Tires 25 × 8‑12
- Rear Tires 25 × 10‑12
- Dimensions & Capacities
- Overall Length 82.9″
- Overall Width 47.4″
- Overall Height 47.8″
- Wheelbase 50.0″
- Seat Height 34.5″
- Ground Clearance 7.5″
- Fuel Capacity 3.9 gal (incl. 1.3 gal reserve)
- Turning Radius 10.5 ft
- Utility & Towing
- Front Rack Capacity 88 lb
- Rear Rack Capacity 176 lb
- Towing Capacity 848 lb
- Curb Weight 635 lb (with all standard equipment & fluids)
- Features & Equipment
- Utility Racks Front & Rear Cargo Racks with Honda Pro‑Connect™ Compatibility
- Engine Features Semi‑Dry‑Sump Design for Lower Center of Gravity
- Recommended Age 16 Years & Older
