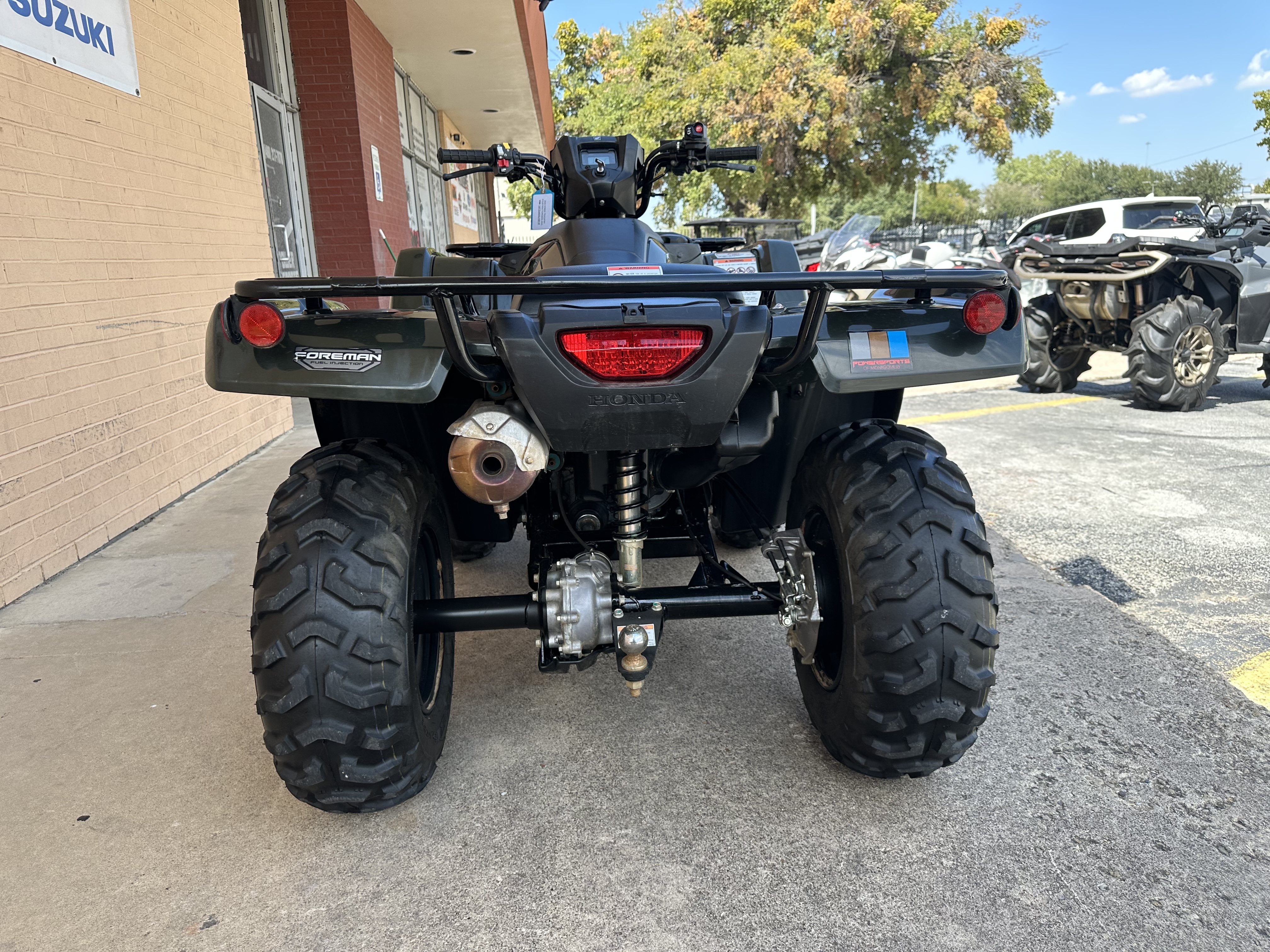

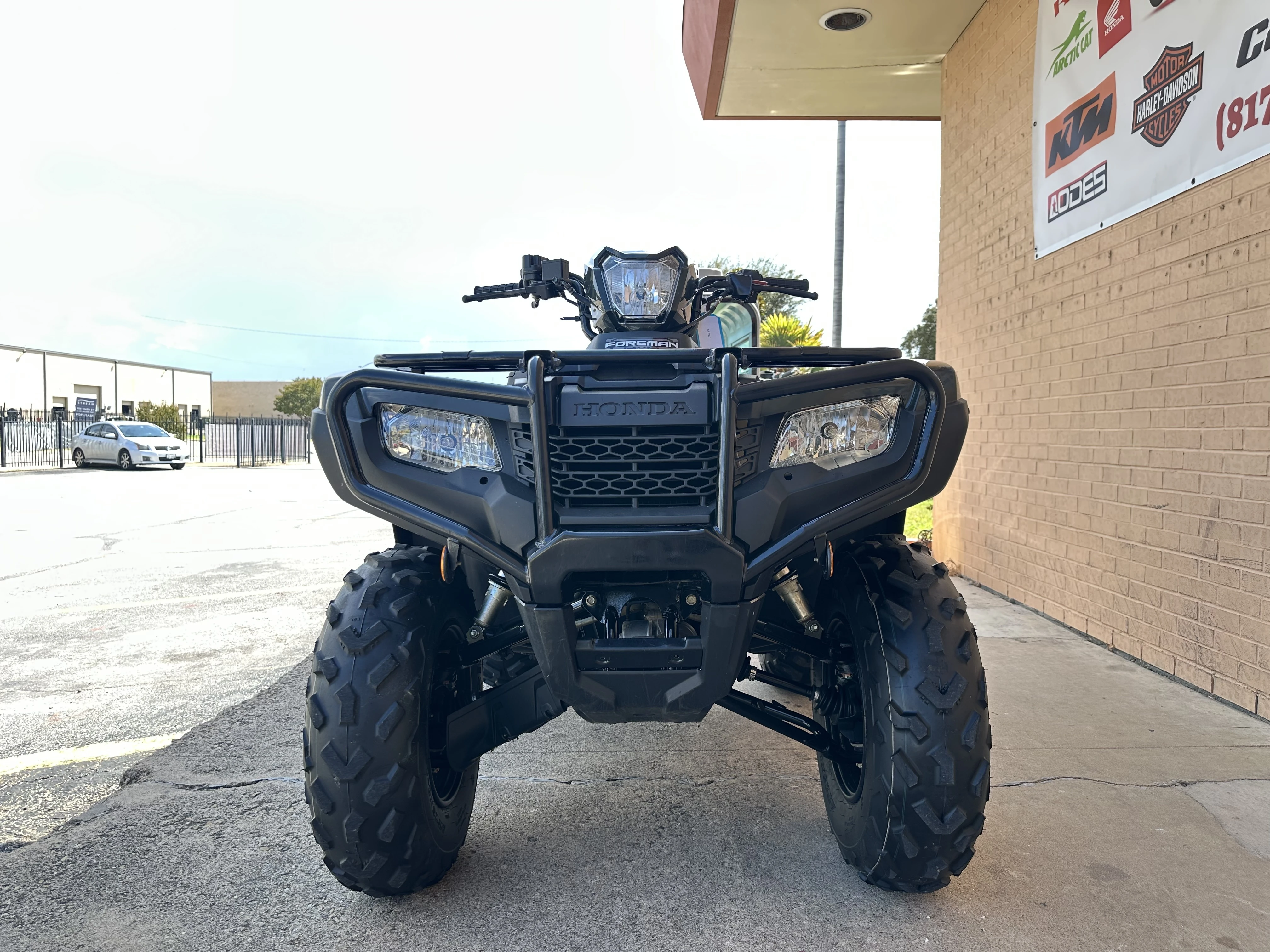

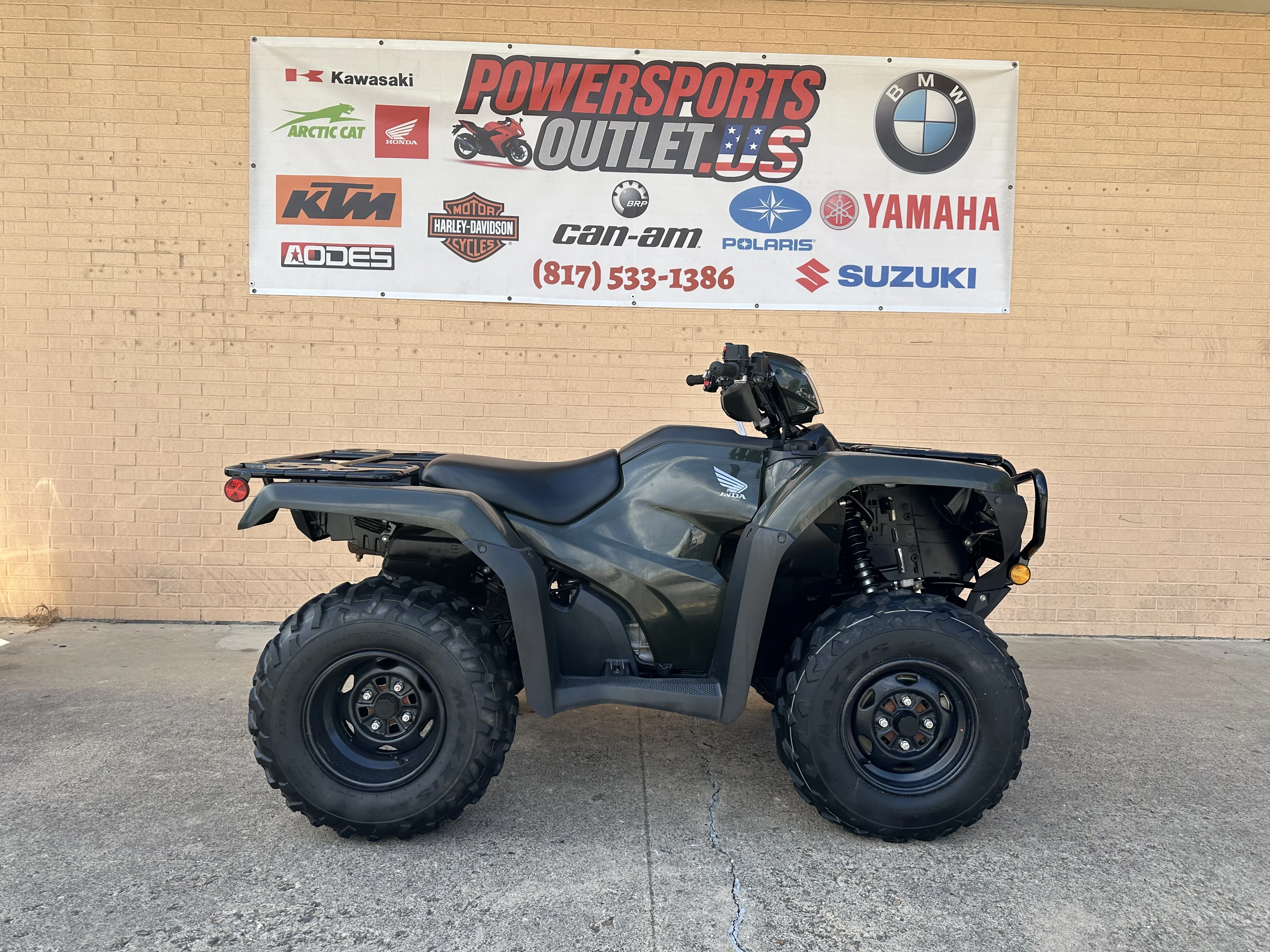

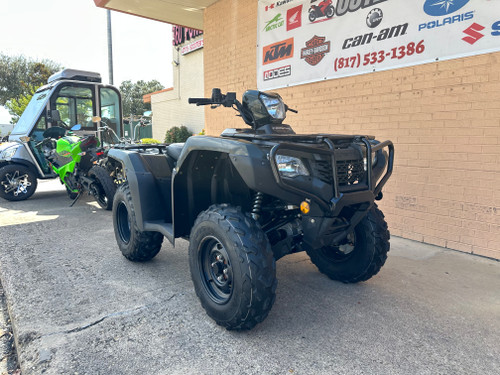

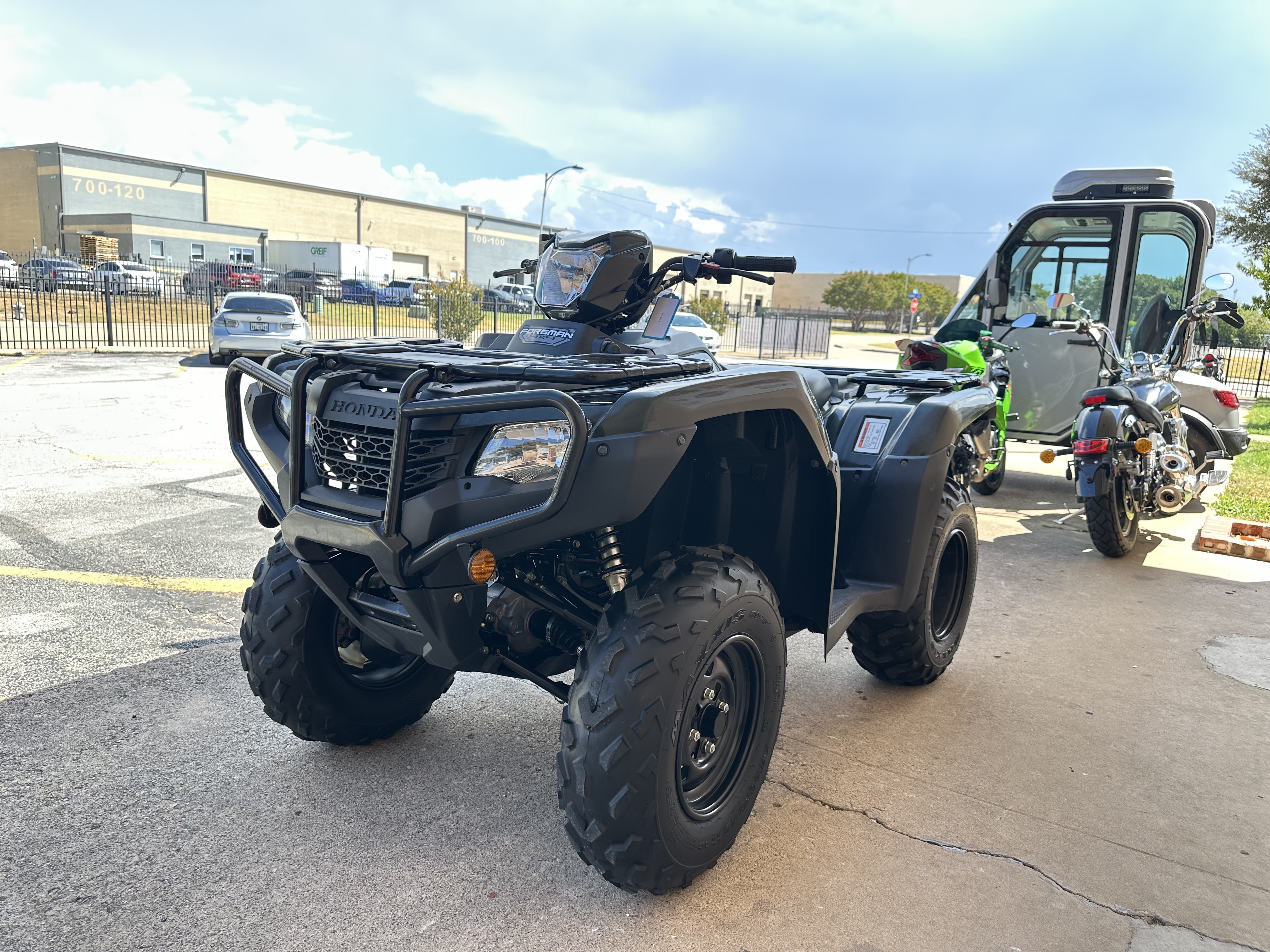

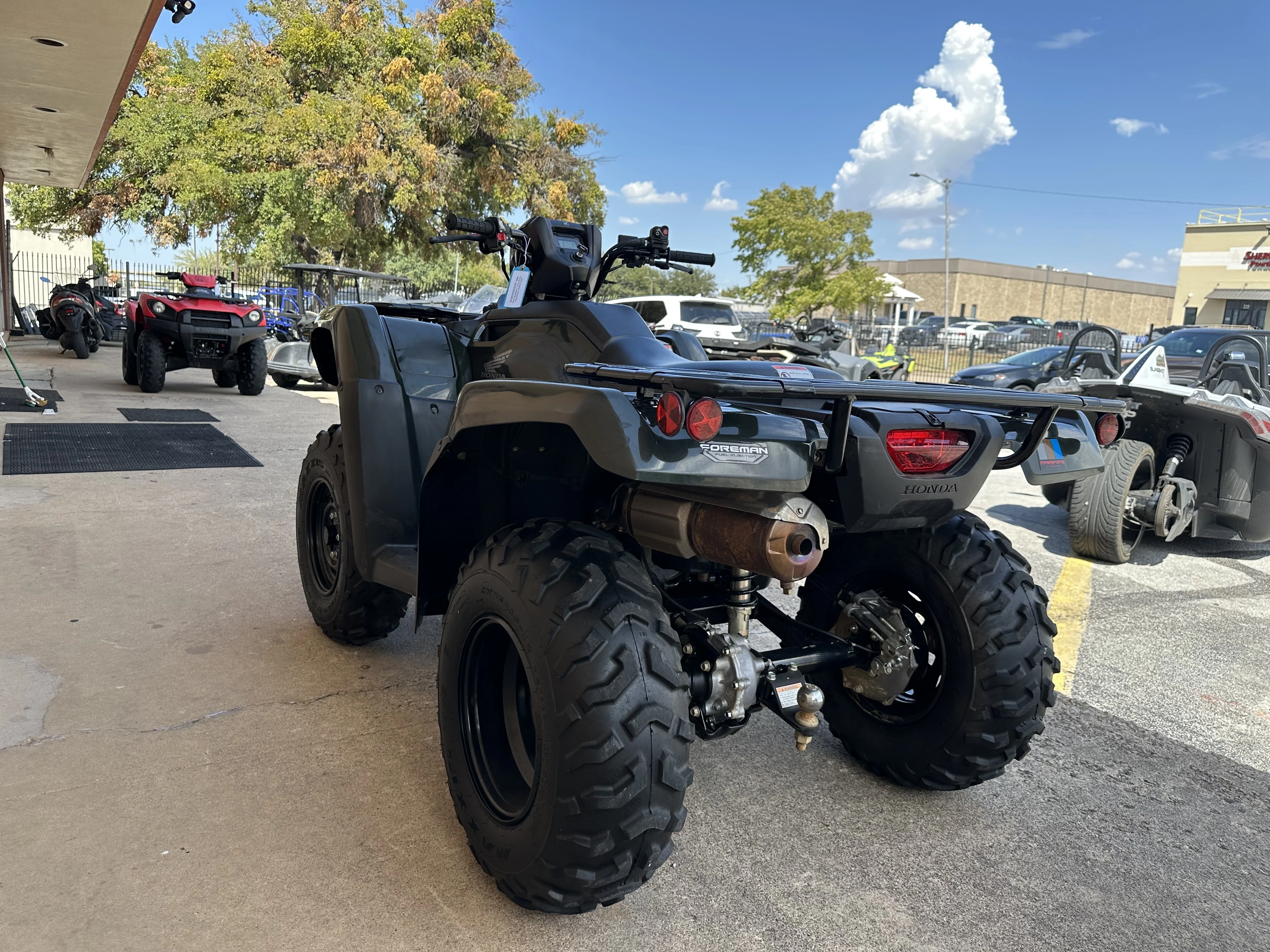

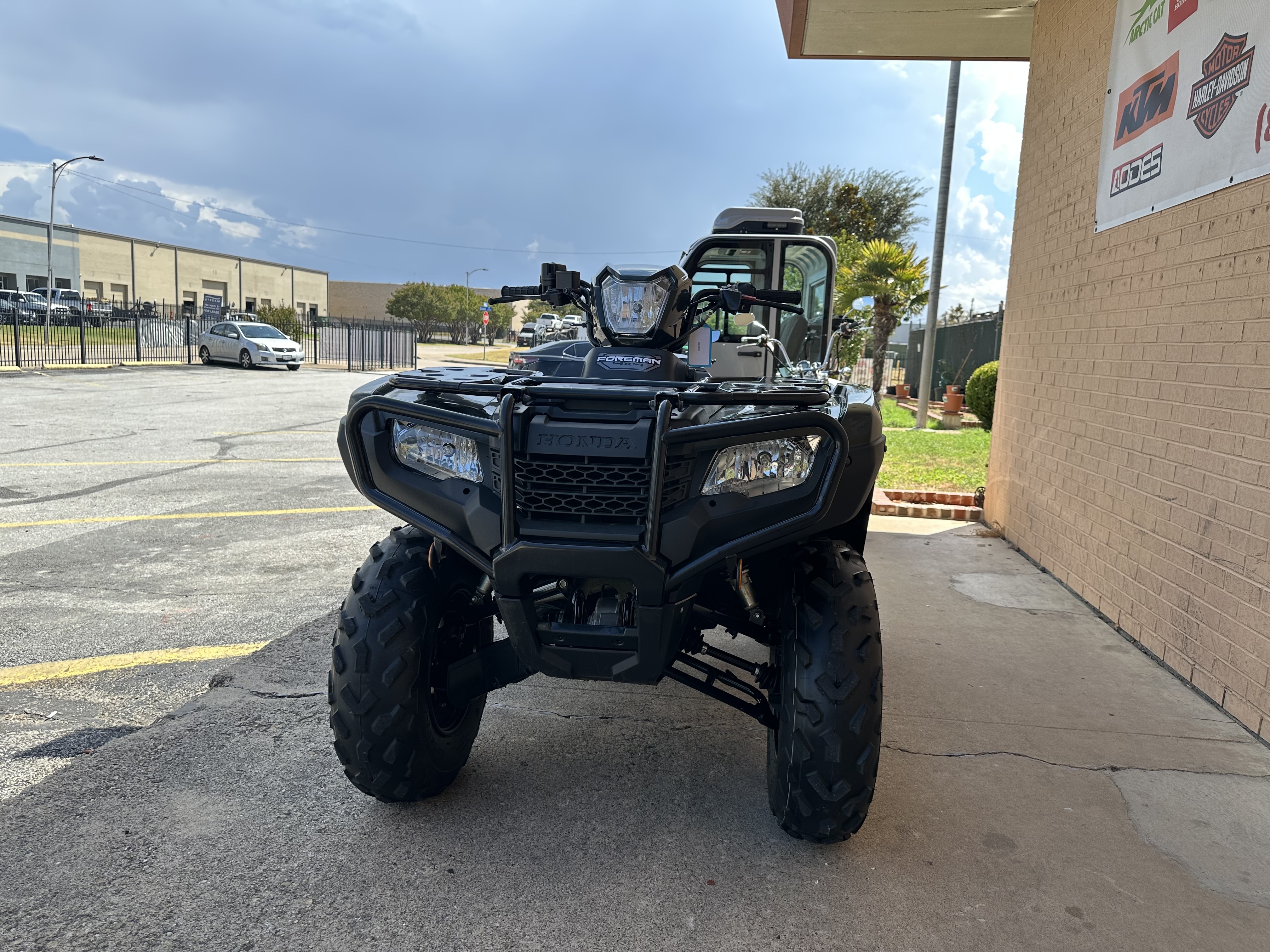

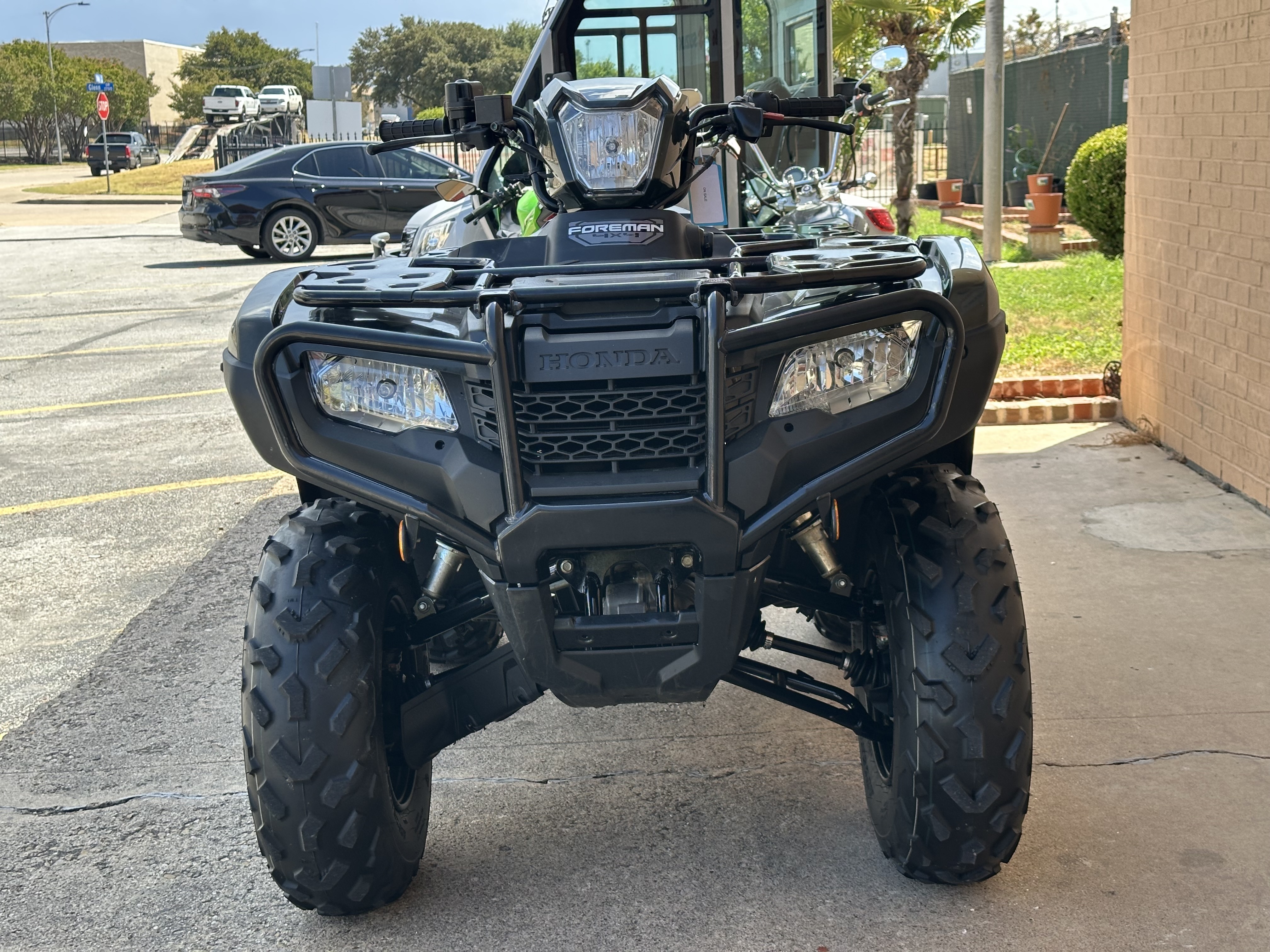

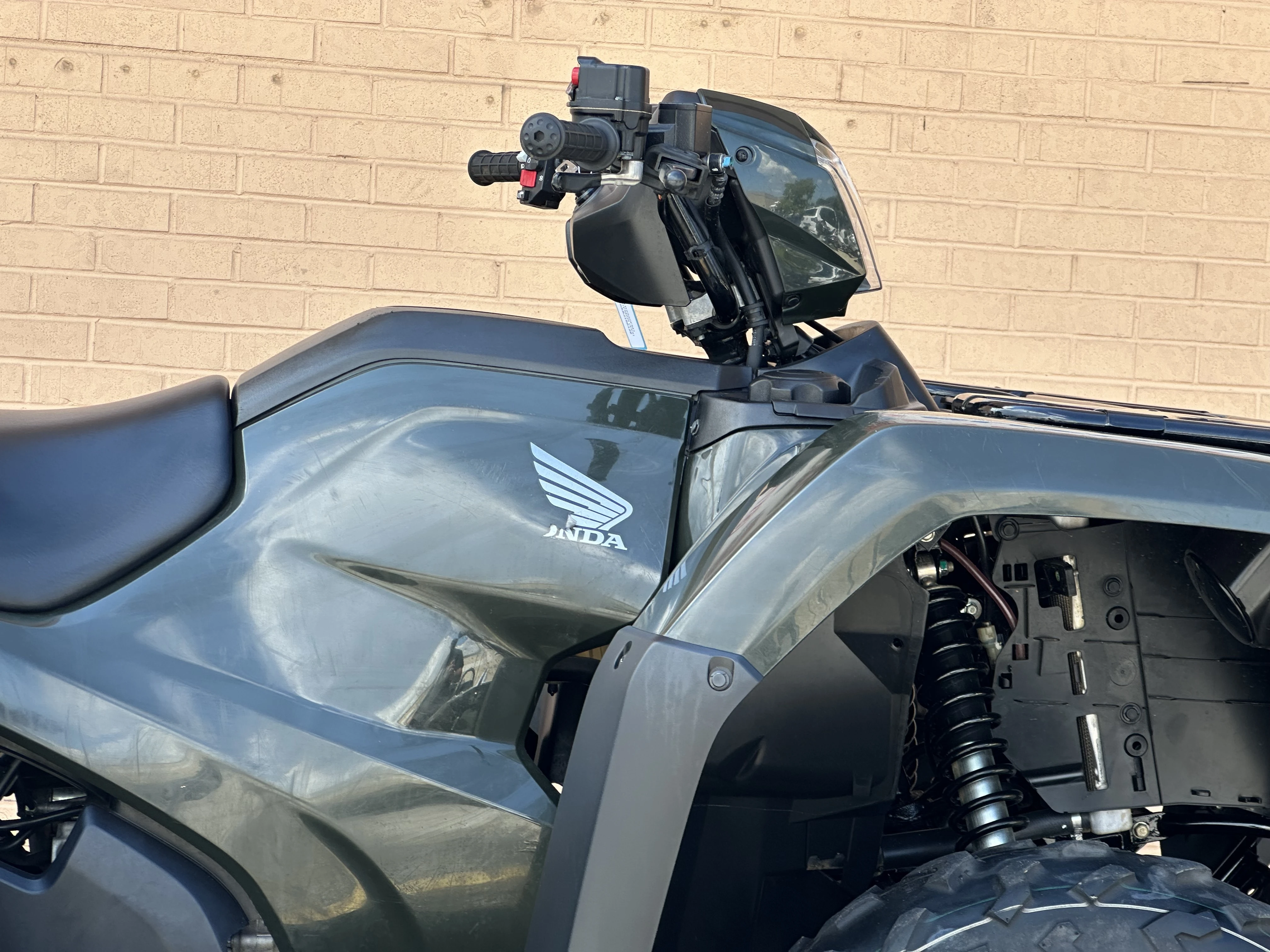

Pre-Owned 2025 Honda FourTrax Foreman 520 4x4 – TRX520FM1 Utility ATV
The 2025 Honda TRX520FM1 FourTrax Foreman 4x4 is a rugged and dependable utility ATV designed for demanding work, trail riding, hunting, farming, and outdoor recreation. Powered by a 518cc liquid-cooled single-cylinder four-stroke engine, the FourTrax Foreman delivers strong low-end torque and reliable performance across a wide variety of terrain.
The engine features electronic fuel injection (PGM-FI) for responsive throttle control and dependable starting. The Foreman is equipped with a manual-shift transmission, giving riders direct control over gear selection for changing work and trail conditions.
Its four-wheel-drive system helps provide improved traction on mud, gravel, hills, and uneven terrain. The rugged chassis and independent rear suspension are designed to provide a balance of durability, comfort, and control during demanding use.
- ENGINE & DRIVETRAIN
- Engine Type 518cc Liquid-Cooled Longitudinally Mounted Single-Cylinder 4-Stroke
- Displacement 518cc
- Bore × Stroke 96.0 × 71.5 mm
- Compression Ratio 9.5:1
- Valve Train OHV; Two Valves per Cylinder
- Fuel System Programmed Fuel Injection (PGM-FI), 36 mm Throttle Body
- Starting System Electric Start with Optional Auxiliary Recoil
- Clutch Automatic Clutch
- Transmission 5-Speed Manual with Reverse
- Driveline Direct Front and Rear Driveshafts with TraxLok, Switchable 2WD/4WD and Locking Front Differential
- SUSPENSION & BRAKES
- Front Suspension Independent Double-Wishbone, 7.3 in (185 mm) Travel
- Rear Suspension Swingarm with Single Shock, 7.3 in (185 mm) Travel
- Front Brakes Dual 190 mm Hydraulic Discs
- Rear Brake 160 mm Sealed Mechanical Drum
- TIRES & WHEELS

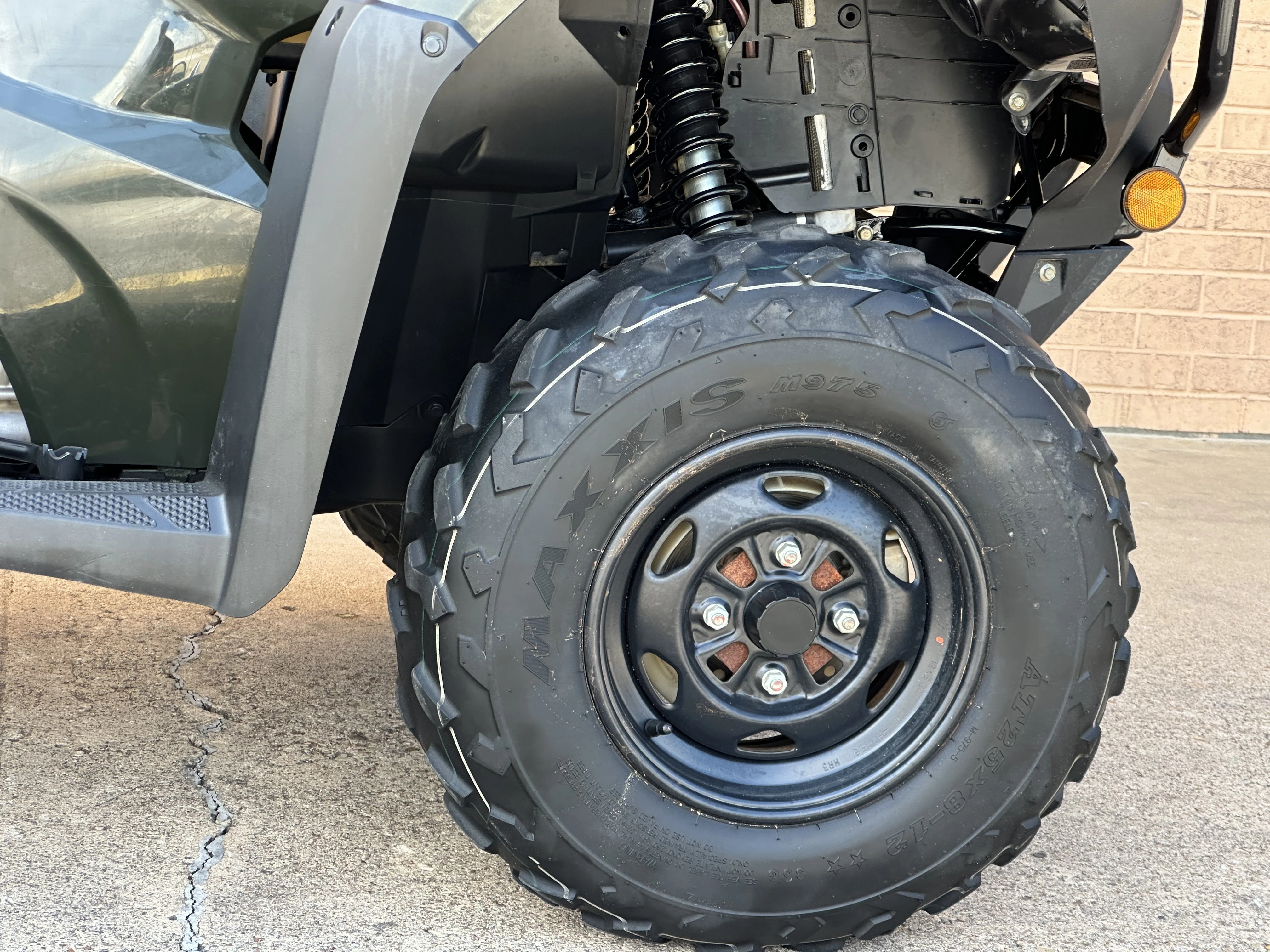

- Front Tires 25 × 8-12

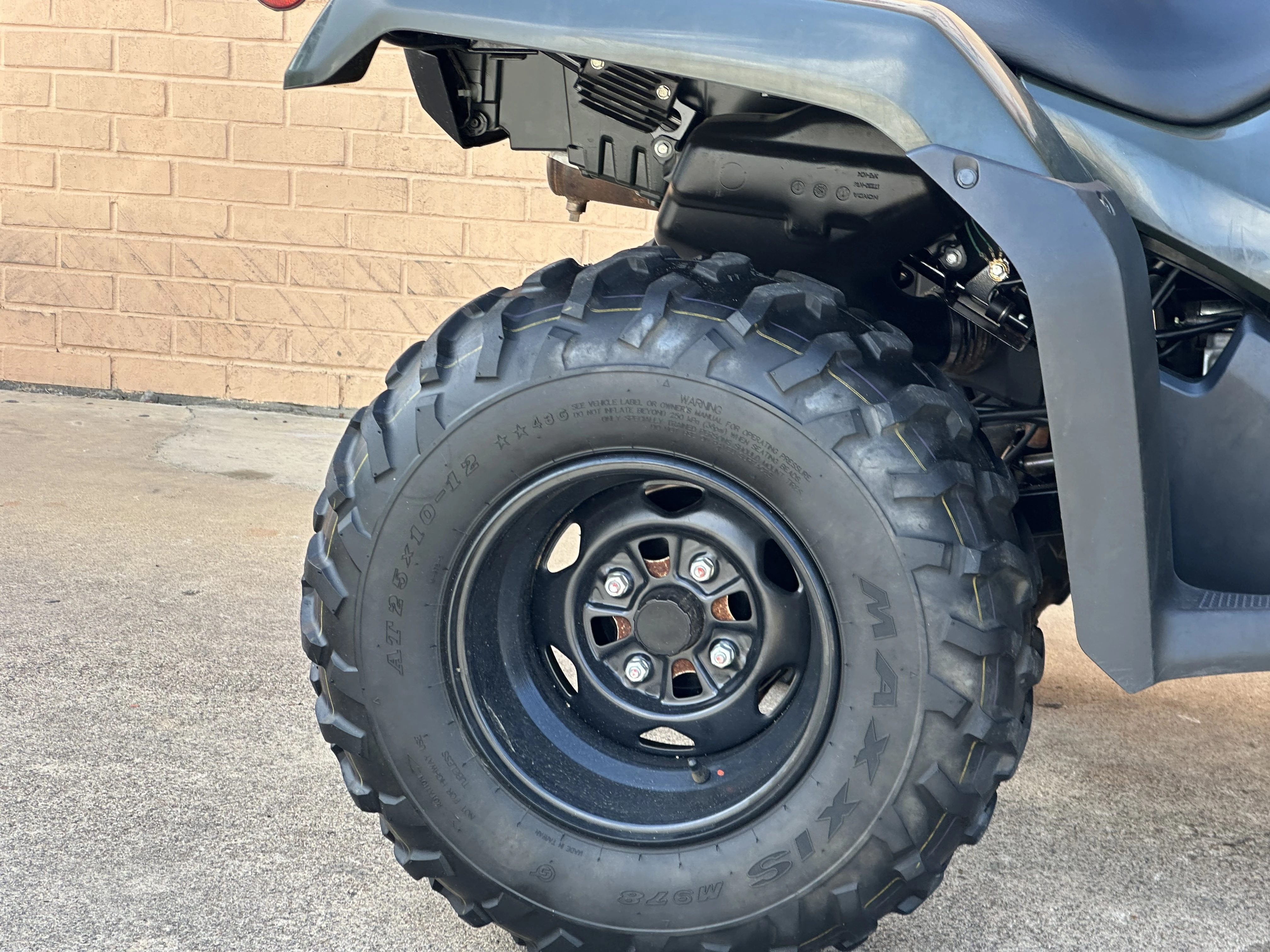

- Rear Tires 25 × 10-12
- DIMENSIONS & CAPACITIES
- Overall Length 82.9 in (2106 mm)
- Overall Width 47.4 in (1204 mm)
- Overall Height 47.8 in (1214 mm)
- Wheelbase 50.0 in (1270 mm)
- Seat Height 34.5 in (876 mm)
- Ground Clearance 7.5 in (191 mm)
- Fuel Capacity 3.9 gal (14.8 L), including 1.3 gal Reserve
- Curb Weight 635 lbs (288 kg)
- Turning Radius 10.5 ft (3.2 m)
- PAYLOAD & TOWING
- Towing Capacity 848 lbs (385 kg)
- Front Rack Capacity 88 lbs (40 kg)
- Rear Rack Capacity 176 lbs (80 kg)
- ADDITIONAL FEATURES
- Model ID TRX520FM1
- Drive Modes 2WD / 4WD with Locking Front Differential
- Cargo Racks Front and Rear Steel Utility Racks
- Available Colors Hero Red, Black Forest Green, TrueTimber Atera Camo
- Emissions Meets Current EPA and CARB Off-Road Emissions Standards
- Warranty 1-Year Transferable Limited Warranty
