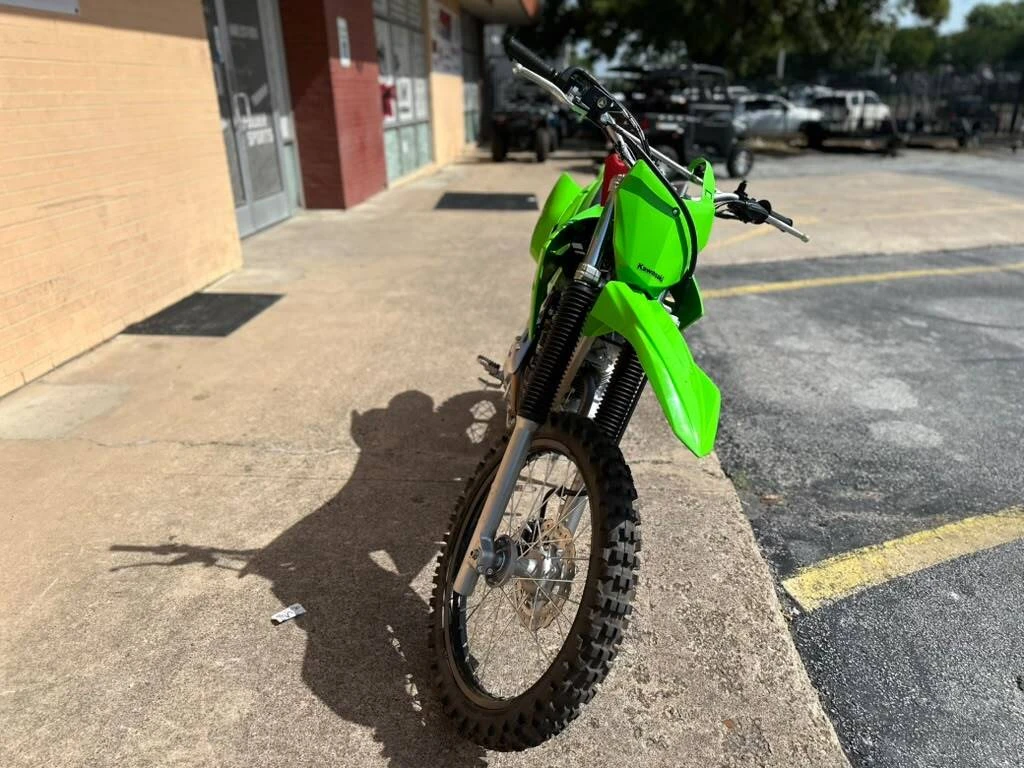

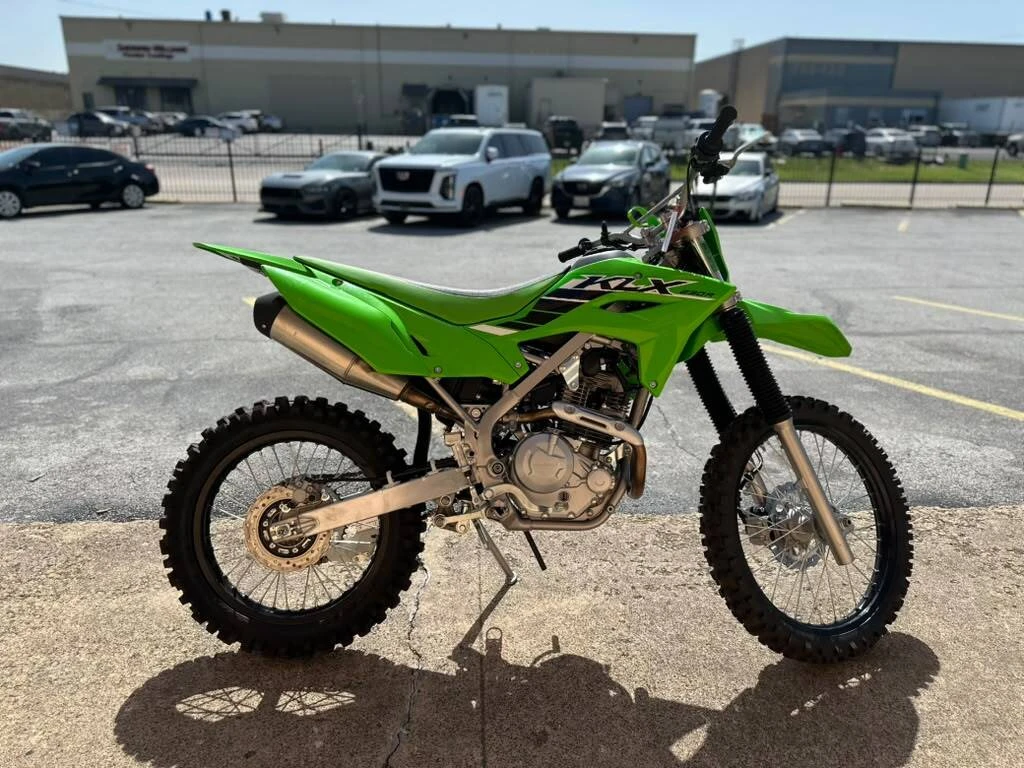

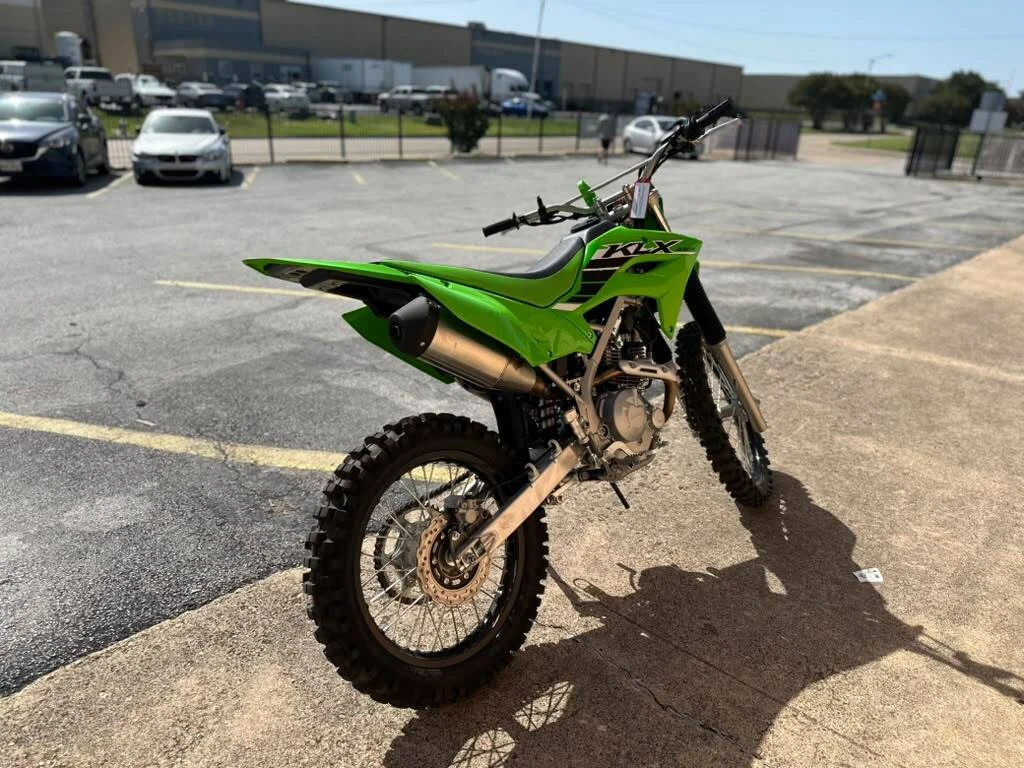

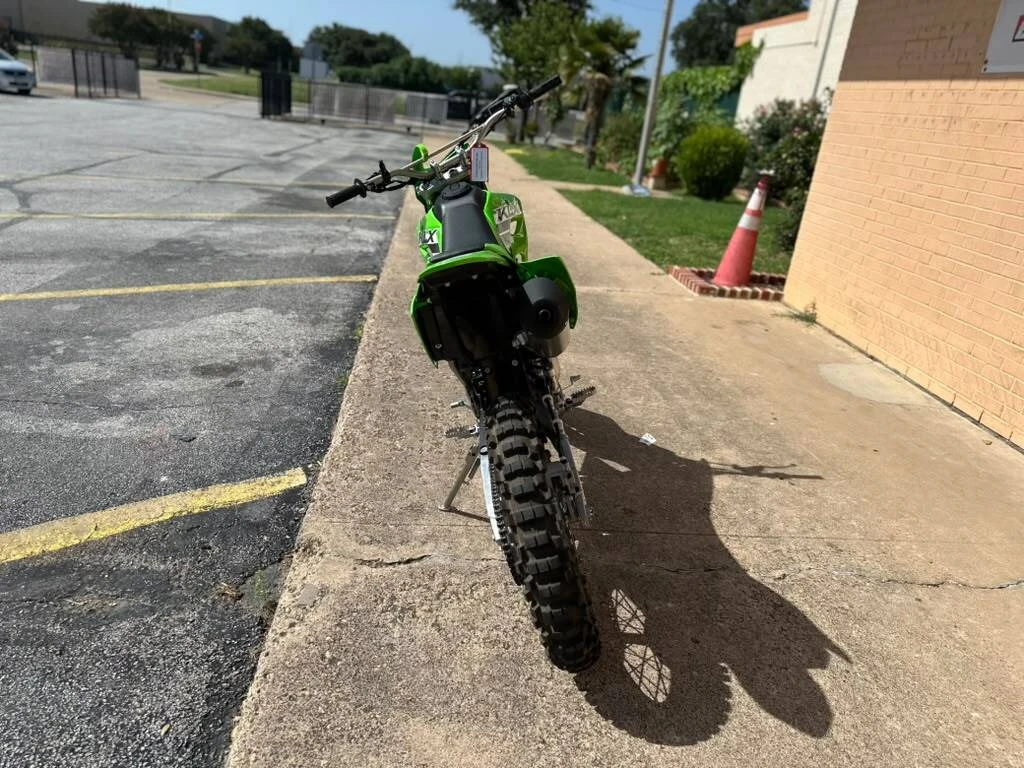

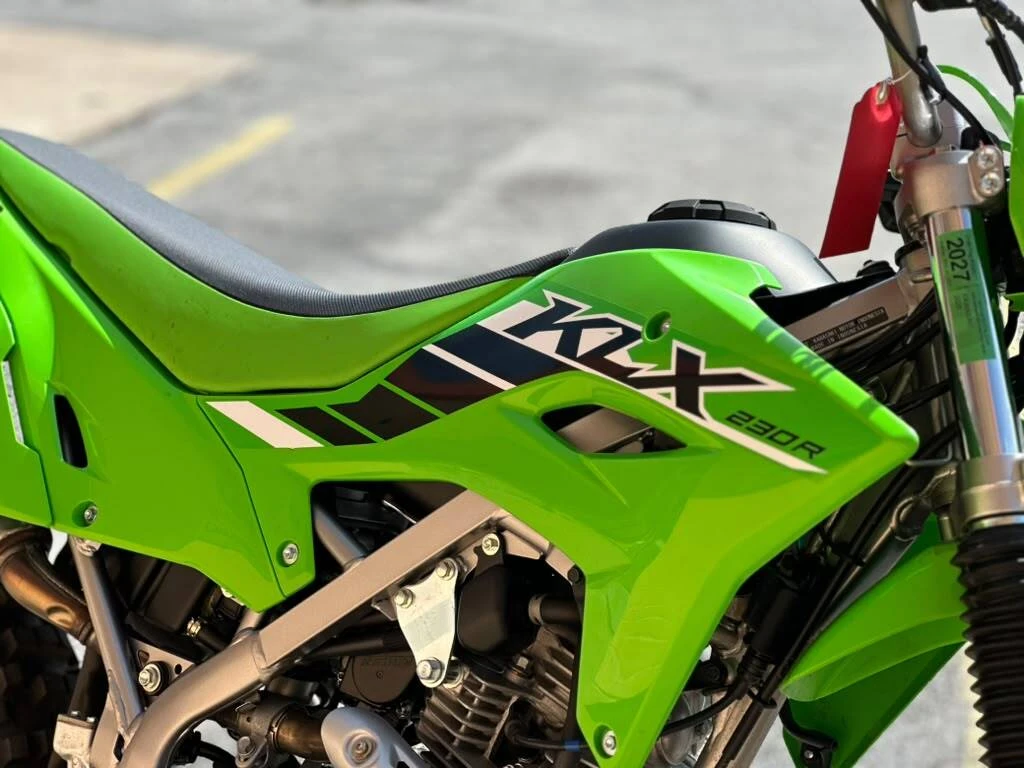

Pre-Owned 2025 Kawasaki KLX230R (KLX230NSFNL) – 233cc Off-Road Trail Dirt Bike

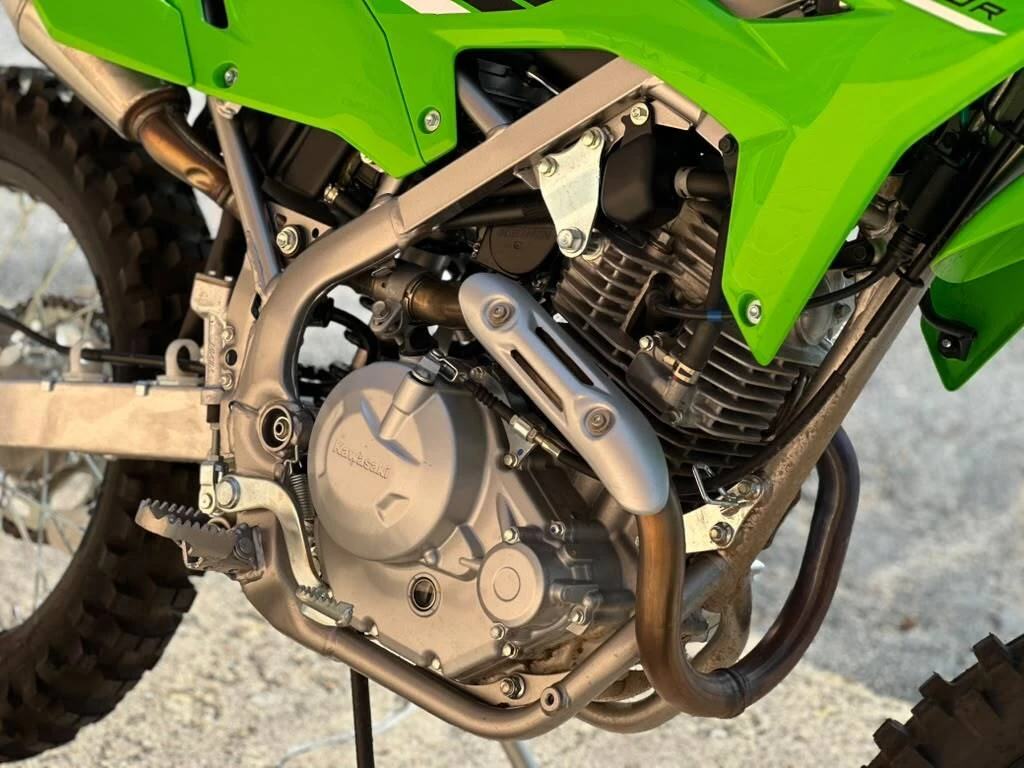

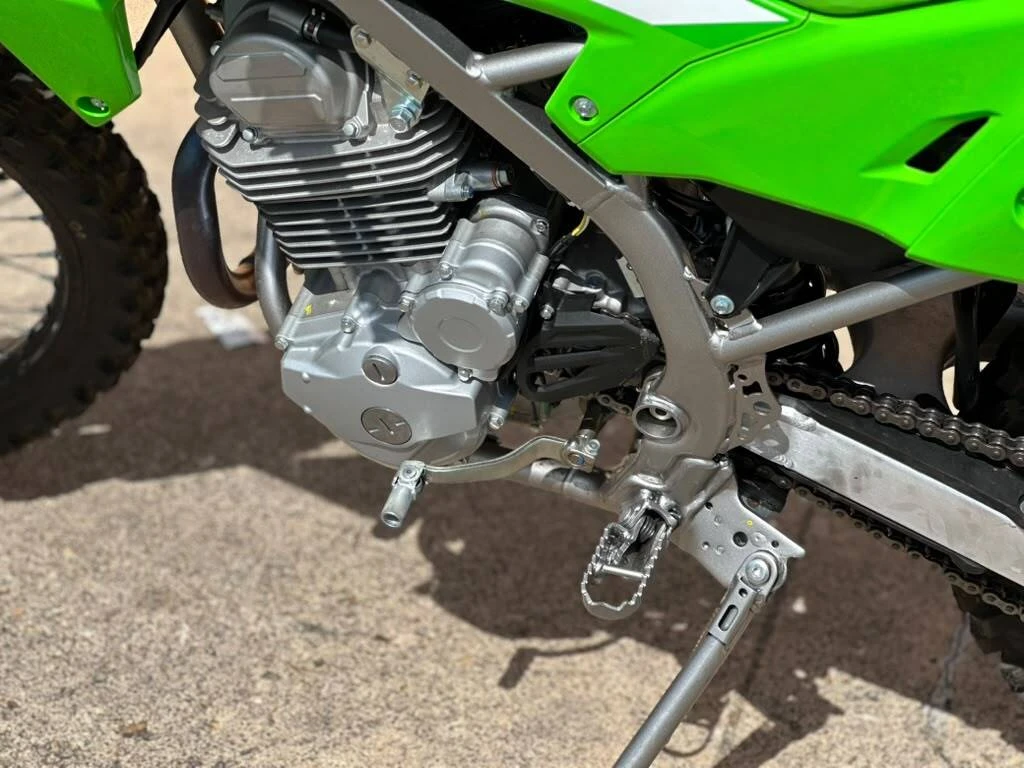

The 2025 Kawasaki KLX230R (KLX230NSFNL) is a versatile off-road trail dirt bike designed for riders seeking dependable performance, easy handling, and rugged capability on trails, woods, and recreational off-road terrain. Powered by a 233cc air-cooled SOHC four-stroke single-cylinder engine, it delivers smooth, controllable power, strong low-end torque, and excellent reliability for riders of all skill levels. Kawasaki's Electronic Fuel Injection (EFI) ensures crisp throttle response, dependable starting, and consistent performance across varying elevations and riding conditions.
The engine is paired with a 6-speed manual transmission, offering a wide gear range for technical trail sections, hill climbs, and faster open trails. A lightweight high-tensile steel perimeter frame provides exceptional durability while maintaining agile handling and rider confidence on challenging terrain.
Designed specifically for off-road riding, the KLX230R features 37mm telescopic front forks and a Uni-Trak® rear suspension with adjustable preload, delivering excellent shock absorption and stability over rocks, roots, and uneven trails. Hydraulic front and rear disc brakes provide reliable stopping power, while 21-inch front and 18-inch rear wheels fitted with aggressive knobby tires maximize traction in dirt, sand, and mud.
- ENGINE & DRIVETRAIN
- Engine Type 4-Stroke, Single-Cylinder, SOHC, Air-Cooled
- Displacement 233cc
- Bore × Stroke 67.0 × 66.0 mm
- Compression Ratio 9.4:1
- Valve System SOHC, 2 Valves
- Fuel System DFI® Fuel Injection with 32mm Keihin Throttle Body
- Ignition TCBI with Electronic Advance
- Starting System Electric Start
- Transmission 6-Speed, Return Shift
- Clutch Wet Multi-Disc Manual Clutch
- Final Drive Chain
- Lubrication Forced Lubrication, Wet Sump
- CHASSIS & SUSPENSION
- Frame High-Tensile Steel, Box-Section Perimeter Frame

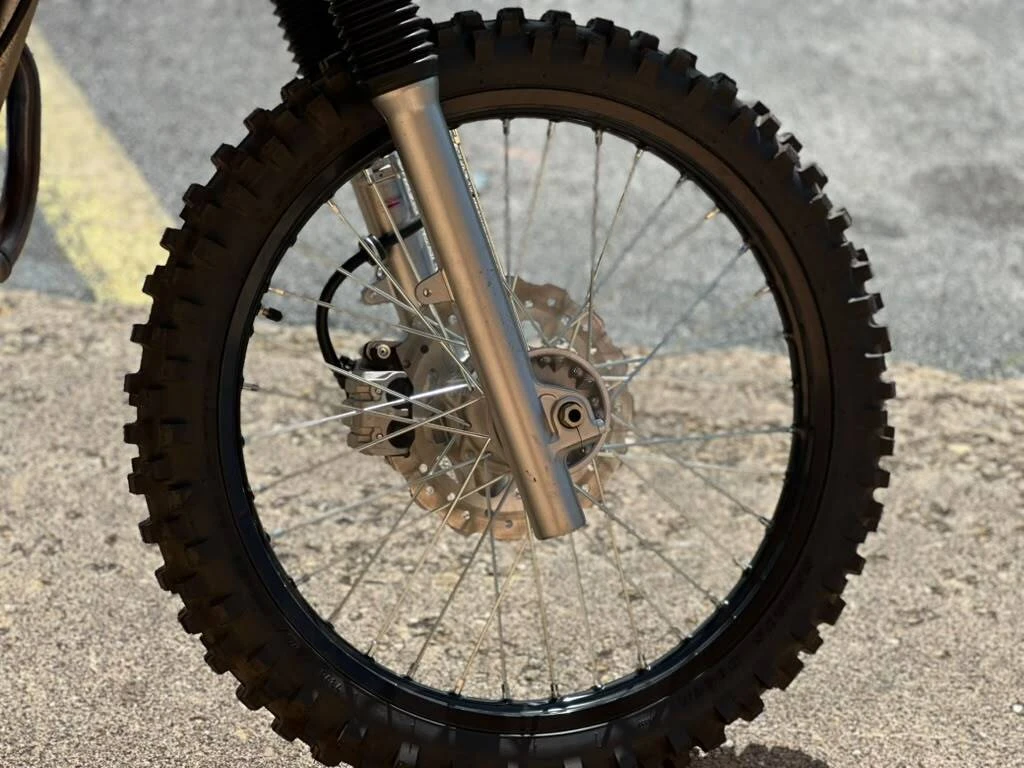

- Front Suspension 37mm Telescopic Fork
- Front Wheel Travel 9.8 in (249 mm)
- Rear Suspension Uni-Trak® Linkage System with Single Shock and Adjustable Spring Preload
- Rear Wheel Travel 9.8 in (249 mm)
- Rake / Trail 25.4° / 4.2 in (107 mm)
- BRAKES & TIRES
- Front Brake Single 240mm Petal Disc with Dual-Piston Caliper

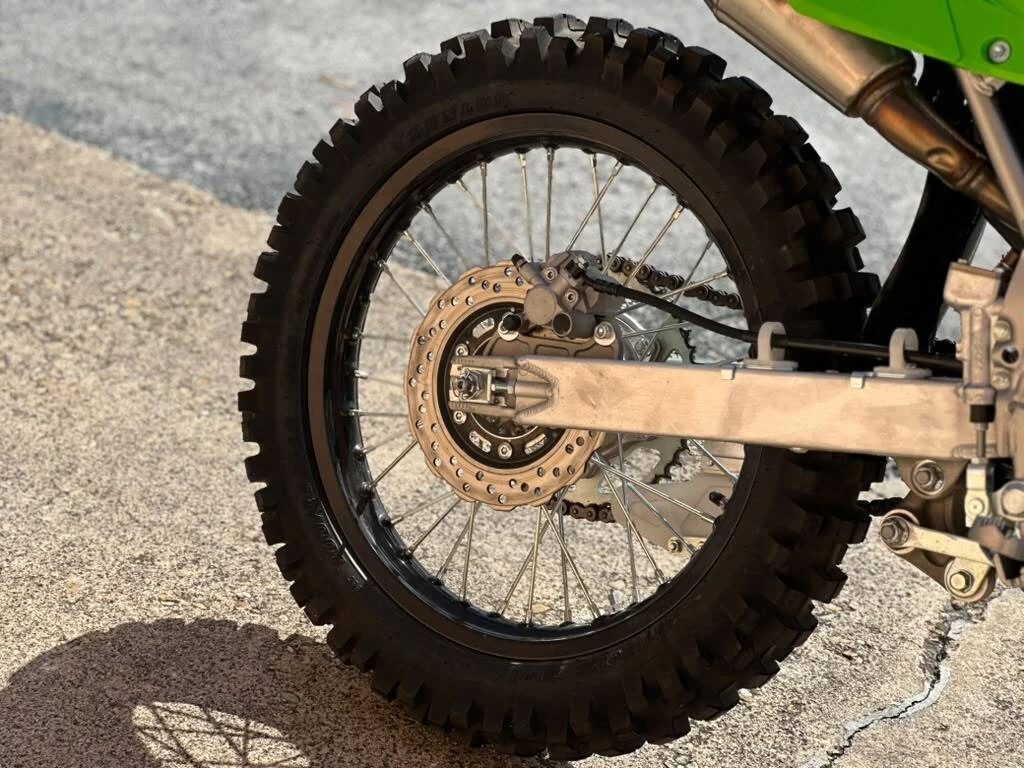

- Rear Brake Single 220mm Petal Disc with Single-Piston Caliper
- Front Tire 80/100-21
- Rear Tire 100/100-18
- Front Wheel 21-Inch Spoke Wheel
- Rear Wheel 18-Inch Spoke Wheel
- DIMENSIONS & CAPACITIES
- Overall Length 80.5 in (2,045 mm)
- Overall Width 33.3 in (845 mm)
- Overall Height 47.2 in (1,199 mm)
- Wheelbase 54.1 in (1,375 mm)
- Seat Height 35.6 in (905 mm)
- Ground Clearance 11.4 in (290 mm)
- Curb Weight 262.4 lb (119 kg) / 264.5 lb 50-State Model

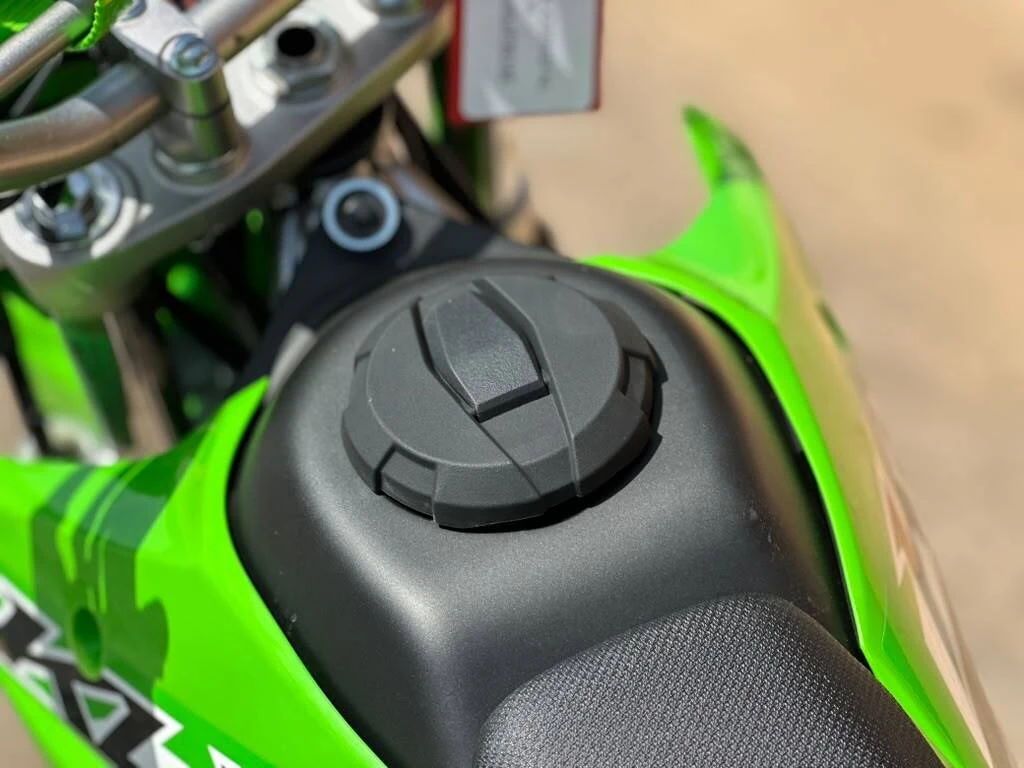

- Fuel Capacity 1.7 gal (6.4 L)
- FEATURES & EQUIPMENT
- Engine Character Strong Low-to-Mid-Range Torque with Primary Balancer
- Air Filter High-Flow Foam Air Filter
- Wheels Full-Size Aluminum Wheels with Bead Stoppers
- Side Stand Folding Side Stand
- Warranty 6-Month Limited Warranty
