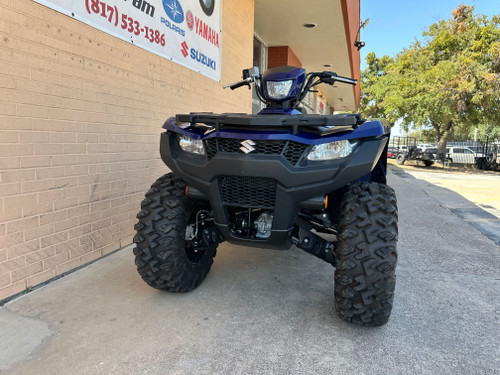

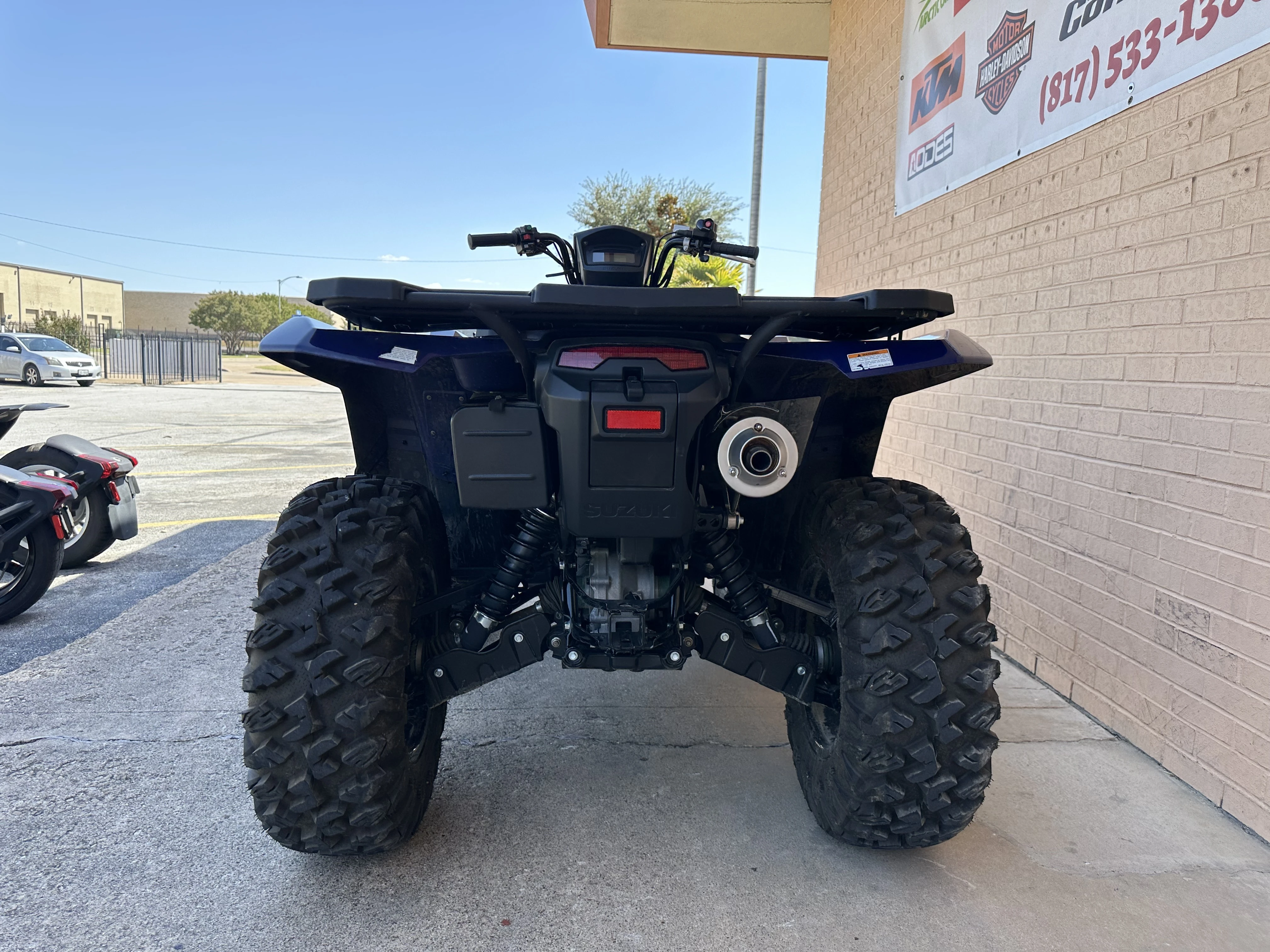

Pre-Owned 2023 Suzuki KingQuad 500AXi Power Steering – 500cc 4x4 Utility ATV
The 2023 Suzuki KingQuad 500AXi Power Steering is a versatile 4x4 utility ATV designed for work, trail riding, hunting, hauling, and outdoor recreation. Powered by a 493cc liquid-cooled, fuel-injected single-cylinder four-stroke engine, the KingQuad 500AXi delivers strong, smooth power with responsive throttle control and dependable performance across a wide range of terrain.
The engine is paired with an automatic CVT transmission featuring High, Low, Neutral, Reverse, and Park ranges. Suzuki's selectable 2WD/4WD system with differential lock allows riders to adjust traction according to changing terrain, helping the ATV maintain control on mud, gravel, hills, and uneven trails.
The KingQuad 500AXi is equipped with electric power steering (EPS) to reduce steering effort and rider fatigue, particularly during slow-speed maneuvering and extended trail rides. Independent suspension helps provide a comfortable and controlled ride over rough surfaces, while generous ground clearance improves capability in challenging terrain.
- ENGINE & DRIVETRAIN
- Engine Type 493cc, 4-stroke, single-cylinder, SOHC, liquid-cooled
- Displacement 493cc (30.1 cu. in.)
- Bore × Stroke 87.5 × 82.0 mm (3.40 × 3.20 in)
- Compression Ratio 9.9:1
- Valve Configuration 4-Valve Cylinder Head
- Fuel System Suzuki Electronic Fuel Injection
- Starter Electric Start
- Lubrication Wet Sump
- Transmission Automatic Variable Ratio V-Belt CVT with High/Low Range and Reverse
- Clutch Dry Shoe, Automatic, Centrifugal Type
- Drive System 2WD, 4WD and 4WD Differential Lock
- Final Drive Shaft Drive
- SUSPENSION & BRAKES
- Front Suspension Independent Double Wishbone, Coil Spring, Gas-Charged and Oil-Damped Shocks with 5-Way Preload Adjustment
- Front Wheel Travel 6.7 in (170 mm)
- Rear Suspension Independent Double Wishbone, Coil Spring, Gas-Charged and Oil-Damped Shocks with 5-Way Preload Adjustment
- Rear Wheel Travel 7.7 in (196 mm)
- Front Brakes Twin Hydraulic Disc Brakes
- Rear Brake Sealed Oil-Bathed Multi-Disc Brake
- Steering Electronic Power Steering
- TIRES & WHEELS
- Front Tires AT25 × 8-12 Carlisle, Tubeless
- Rear Tires AT25 × 10-12 Carlisle, Tubeless
- Wheels Cast Aluminum Wheels
- DIMENSIONS & CAPACITIES
- Overall Length 84.6 in (2,150 mm)
- Overall Width 47.8 in (1,215 mm)
- Overall Height 50.6 in (1,285 mm)
- Wheelbase 50.6 in (1,285 mm)
- Seat Height 36.2 in (920 mm)
- Ground Clearance 10.2 in (260 mm)
- Curb Weight 725 lbs (329 kg)
- Fuel Capacity 4.6 gal (17.5 L)
- Towing Capacity 1,322 lbs (600 kg)
- FEATURES & EQUIPMENT
- Drive Selection Push-Button 2WD, 4WD and Differential-Lock 4WD
- Engine Braking Advanced Engine-Braking System
- Differential Torque-Sensing Limited-Slip Front Differential

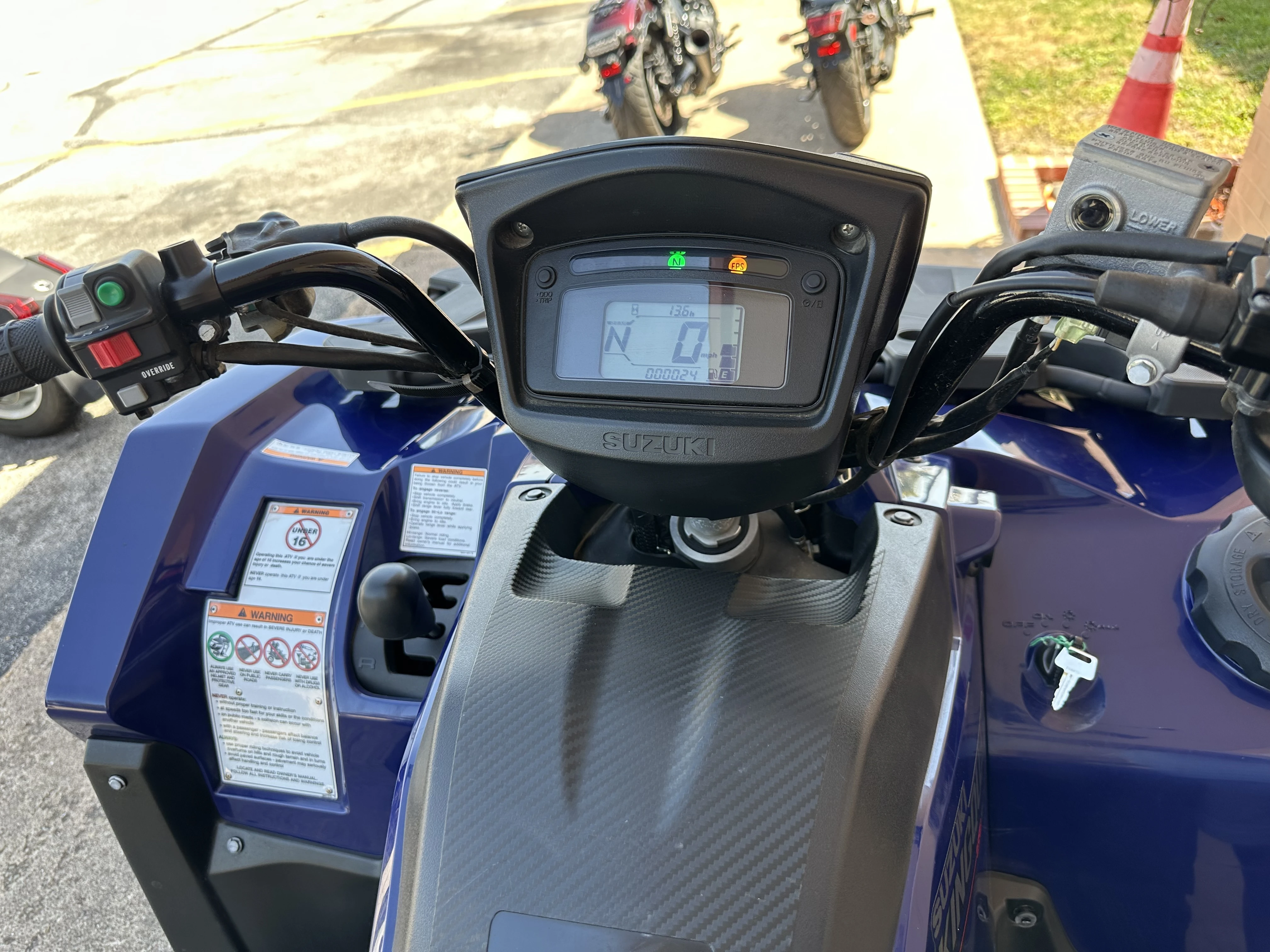

- Instrument Panel Full LCD Multi-Function Display
- Headlights Dual 35W Fender-Mounted Headlights and 35W Handlebar-Mounted Headlight
- Tail Light LED
- Cargo Racks Front and Rear Utility Cargo Racks
- Protection Polyethylene Skid Plates and Half-Shaft Guards
- Winch Winch-Ready Mounts and Wiring Conduit
- Hitch Receiver-Type Trailer Hitch Mount
- Frame Reinforced Steel Frame
